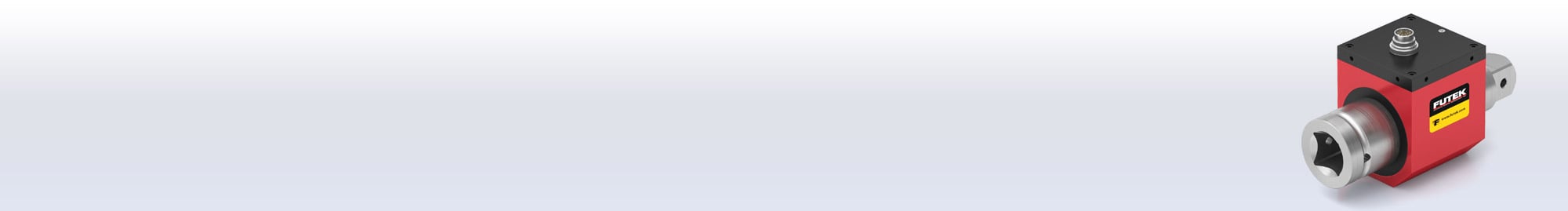

Rotary Torque Sensor - Non Contact Square Drive with Encoder
TRD605

Non-Contact Square-Drive Rotary Torque Sensor with Encoder

8 Products
settings
Item Number
Torque Capacity
Torque Sensor Type
Mounting Type
Output Type
Height In Inches
Length In Inches
Width In Inches
Max Operating Temperature
Min Operating Temperature
Nonrepeatability
Nonlinearity
Max Excitation
Safe Overload
Connection Type
Ip / Nema Rating
Rotary Type
Connector Type
Temperature Shift Zero
Description
Custom Special
106.209 in-lb
Rotary
Square Drive
Encoder TTL, VDC
2.04
2.28
1.1
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRD605 , 12 N-m , Non-Contact Square Drive Rotary Torque Sensor w/ Encoder , 1/4-Sq. Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
159.313 in-lb
Rotary
Square Drive
Encoder TTL, VDC
2.04
2.28
1.1
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRD605 , 18 N-m , Non-Contact Square Drive Rotary Torque Sensor w/ Encoder , 1/4-Sq. Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
442.537 in-lb
Rotary
Square Drive
Encoder TTL, VDC
2.28
2.32
1.49
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRD605 , 50 N-m , Non-Contact Square Drive Rotary Torque Sensor w/ Encoder , 3/8-Sq. Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
885.075 in-lb
Rotary
Square Drive
Encoder TTL, VDC
2.28
2.32
1.49
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRD605 , 100 N-m , Non-Contact Square Drive Rotary Torque Sensor w/ Encoder , 1/2-Sq. Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
1416.12 in-lb
Rotary
Square Drive
Encoder TTL, VDC
2.28
2.32
1.49
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRD605 , 160 N-m , Non-Contact Square Drive Rotary Torque Sensor w/ Encoder , 1/2-Sq. Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
2212.69 in-lb
Rotary
Square Drive
Encoder TTL, VDC
2.99
2.52
2.28
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRD605 , 250 N-m , Non-Contact Square Drive Rotary Torque Sensor w/ Encoder , 3/4-Sq. Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
4425.37 in-lb
Rotary
Square Drive
Encoder TTL, VDC
2.99
2.24
2.28
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRD605 , 500 N-m , Non-Contact Square Drive Rotary Torque Sensor w/ Encoder , 3/4-Sq. Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
8850.75 in-lb
Rotary
Square Drive
Encoder TTL, VDC
3.54
2.24
2.87
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRD605 , 1000 N-m , Non-Contact Square Drive Rotary Torque Sensor w/ Encoder , 1" Sq. Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N

FUTEK’s Rotary Torque Sensor - Non Contact Square Drive with Encoder offers a unique solution for torque auditing applications. The TRD605 Rotary Torque Sensor - Non Contact Square Drive with Encoder is available in a wide capacity range and utilizes strain gauge technology. FUTEK's TRD Series is also available with a TEDS / IEEE1451.4 option.

Rotary Torque Sensor - Non Contact Square Drive with Encoder
Rotary Torque Sensor - Non Contact Square Drive with Encoder
Rotary Torque Sensor - Non Contact Square Drive with Encoder
Rotary Torque Sensor - Non Contact Square Drive with Encoder
Rotary Torque Sensor - Non Contact Square Drive with Encoder
Rotary Torque Sensor - Non Contact Square Drive with Encoder
Non-Contact Square-Drive Rotary Torque Sensor with Encoder
Non-Contact Square-Drive Rotary Torque Sensor with Encoder
