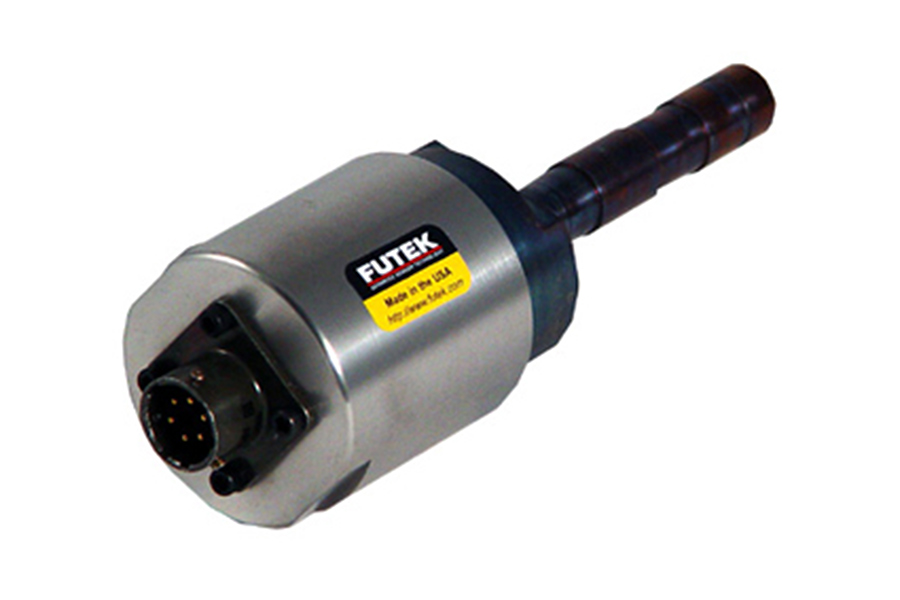

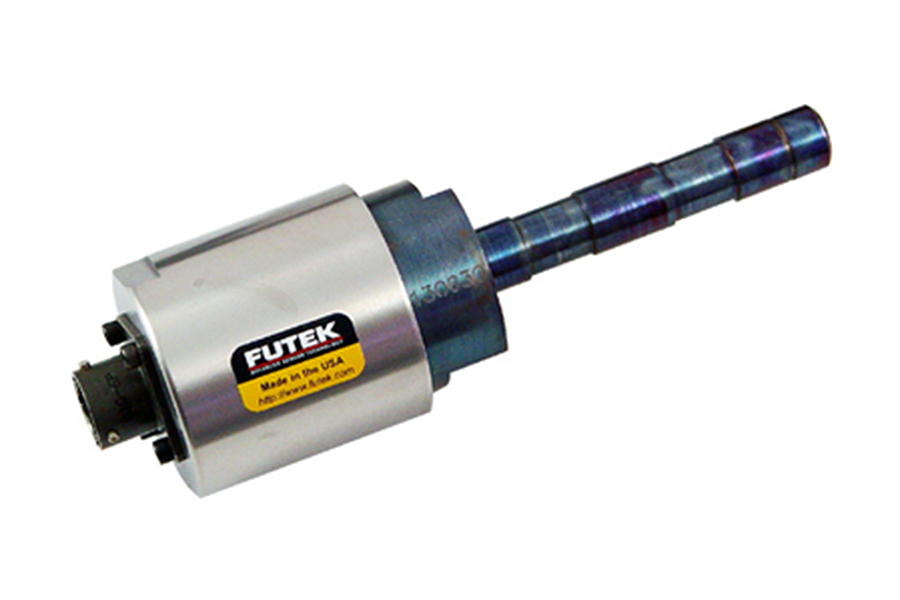

Amplified Load Sensing Clevis Pin

QLA110 , 1500 lb , Amplified Load Pin , Clevis Pin , Shear Pin Load Cell , 0.495" [12.57 mm] OD , 2.5 +/-2 VDC Analog Output , Material - 17-4 PH S.S. , Internal Amplifier , 6 Pin Bendix Receptacle, PT02A-10-6P

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Features

Support Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	10		24	Vdc
Input Resistance	1		372		Ohms nom.
Safe Overload	1			150	% of R.O.
Capacity	1			1500	lbs
Nonlinearity	1	-2		2	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-40		200	F
Temperature Shift Span	1	-0.01		0.01	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
Zero Balance	1	2.4		2.6	Vdc
