QLA386 play_arrowQSH01793

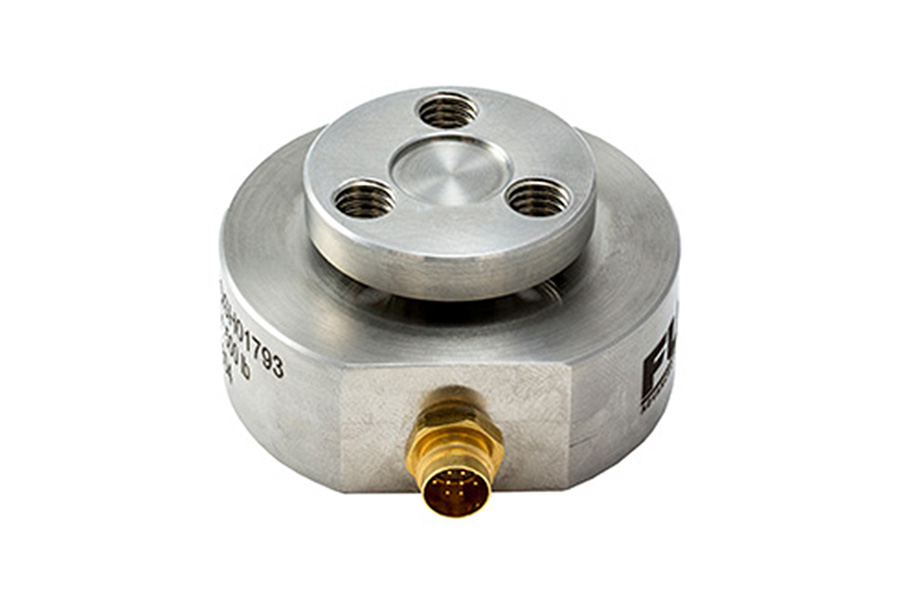

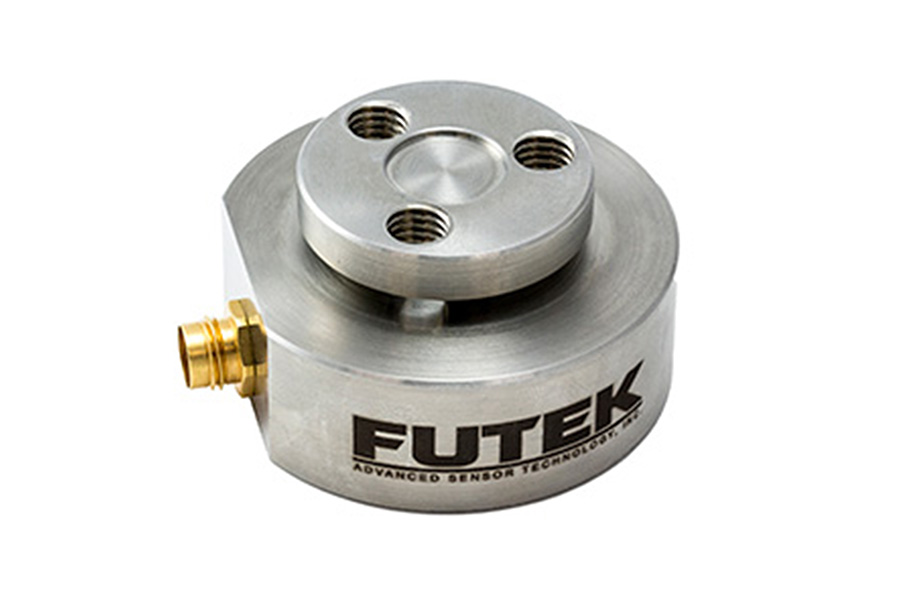

Custom Tension and Compression Loadcell with Digital Output

QLA386 , 500 lb [2220 N] , Custom Tension & Compression Flange Mount Load Cell w/ Digital RS232 Output , Material - 17-4 PH S.S , M8X1.25 Threads , 12 Pin Microcom Connector
Listed price is in U.S. currency and subject to verification along with availability
QLA386
QLA386
QLA386
Description

Custom Tension and Compression Load cell with Digital Output

Features
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
4.9
5
5.1
Vdc
Excitation
1
4.9
5
5.1
Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
500
lbs
Hysteresis
1
-0.5
0.5
% of R.O.
Nonlinearity
1
-0.5
0.5
% of R.O.
Nonrepeatability
1
-0.5
0.5
% of R.O.
Rated Output
1
500
lbs
Compensated Temperature
1
60
160
F
Operating Temperature
1
32
160
F
Related Accessories
QLA386, Mating Connector Assembly, 12 Pin MicroCom Connector to 28 Awg Polyurethane Cable, 7 ft Long
+
