QLA276 play_arrowQSH00848

2 Prong Collet Sensor

QLA276 , 10000 N , 2 Prong Collet Compression Sensor , 1.693 in [43 mm] OD , Knurled Mounting/Gripping Surface , Material - 17-4 PH S.S. , 28 Awg, 6 Conductor Braided Shielded Polyurethane Cable , 3 ft Long
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description

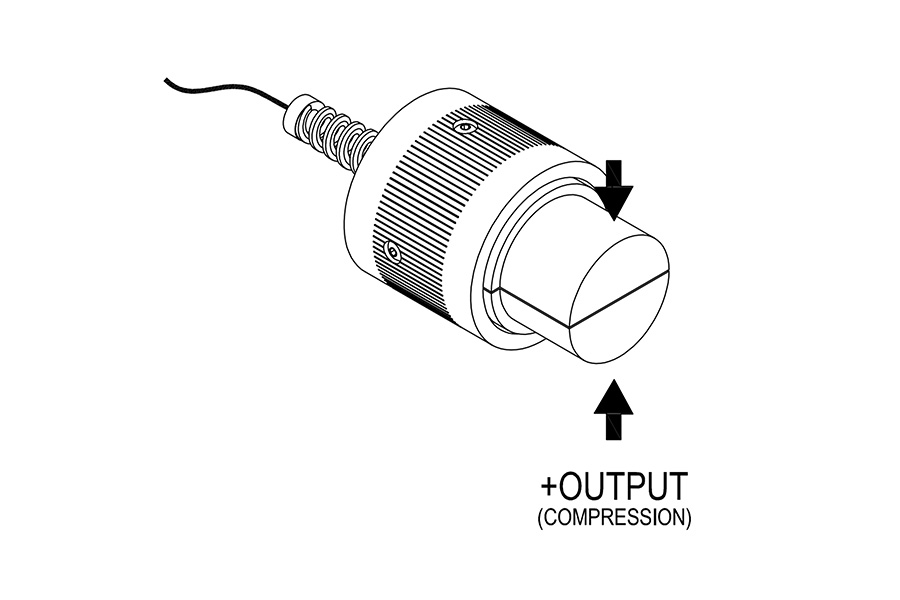

Model QLA276 is a custom 2 prong collet compression sensor that is designed to measure compression forces up to 10 kN (2248 lbs). The body of the sensor is made of stainless steel, with an OD of 1.693 inches (43 mm). It has an operating temperature of 0 to 200 °F (-17 to 93°C).

Features
  • Includes 3-ft (0.91 m) 28 Awg shielded polyurethane cable
  • Knurled mounting/gripping surface
  • Built-in strain relief for improved robustness
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Performance
CHANNELMINTYPMAXUNIT
Capacity
1
10000
N
