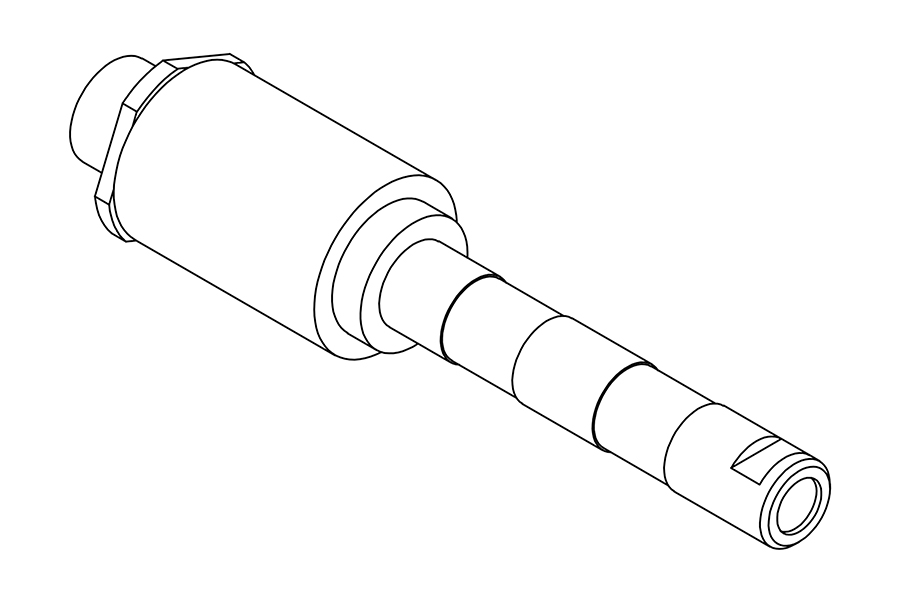

Amplified Load Sensing Clevis Pin

QLA192 , 1500 lb , Amplified Load Pin , Clevis Pin , Shear Pin Load Cell , 0.495" [12.57 mm] OD , 2.5 +/-2 VDC Analog Output , Material - 17-4 PH S.S. , Internal Amplifier , 6 Pin Bendix Receptacle, PT02A-10-6P

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Model QLA192 is a custom amplified load sensing clevis pin that is capable of measuring up to 1500 lb (6672 N). The OD of the pin is 0.490 inches (12.45 mm). The body of the sensor is made of stainless steel and includes an internal amplifier that outputs a +/- 2 VDC analog signal. It includes a 6 pin Bendix receptacle. FUTEK is capable of designing clevis pins of various geometries and capacities.

Features

+/- 2 VDC nominal rated output
Operating temperature of -40 to 180 °F (-40 to 82 °C)
Body of sensor features an anti-rotation key

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	10		24	Vdc
Input Resistance	1		372		Ohms nom.
Safe Overload	1			150	% of R.O.
Capacity	1			1500	lbs
Nonlinearity	1	-2		2	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-40		200	F
Temperature Shift Span	1	-0.01		0.01	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
Zero Balance	1	2.4		2.6	Vdc
