Custom Beam w/ Load Button

QLA368 , 40 lb , Custom Low Profile Beam Load Cell Designed for Laparoscopic Tool (MIS) Calibration/Verification , 0.217" [5.51 mm] Height , Material - 17-4PH , 34 Awg 4 Conductor Braided Cable , 5 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

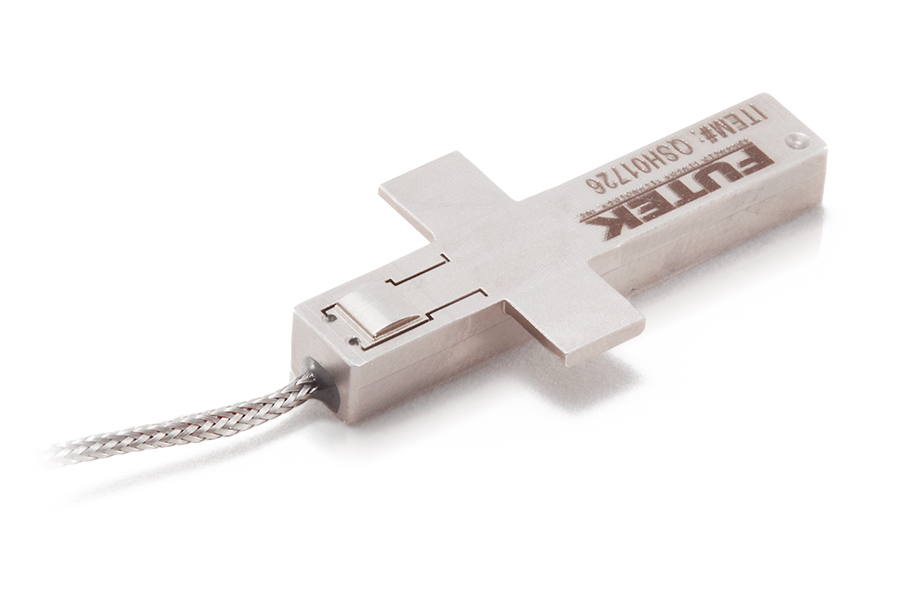

Model QLA368 is a custom low-profile beam load cell featuring a load button. It is designed for Laparoscopic Tool (MIS) calibration/verification. It is designed for compression only, with a rated output of which can be tailored to a wide range of force measurements. It features a maximum height of only 0.227 in (5.77 mm). Its overall length is 1.370 in (34.80 mm) and is constructed of robust 17-4 PH stainless steel.

Features

QSH01640 features a small spot on body of load cell for visual identification purposes
Axial exit cable, #34 AWG, 4 conductor Teflon braided shielded, 5 ft (1.5 m) long
Fast response time

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		10	Vdc
Input Resistance	1		350		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			40	lbs
Hysteresis	1	-1		1	% of R.O.
Nonlinearity	1	-1		1	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1.5		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-40		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-5		5	% of R.O.
