QSH01670 Custom Compression Pancake Load Cell

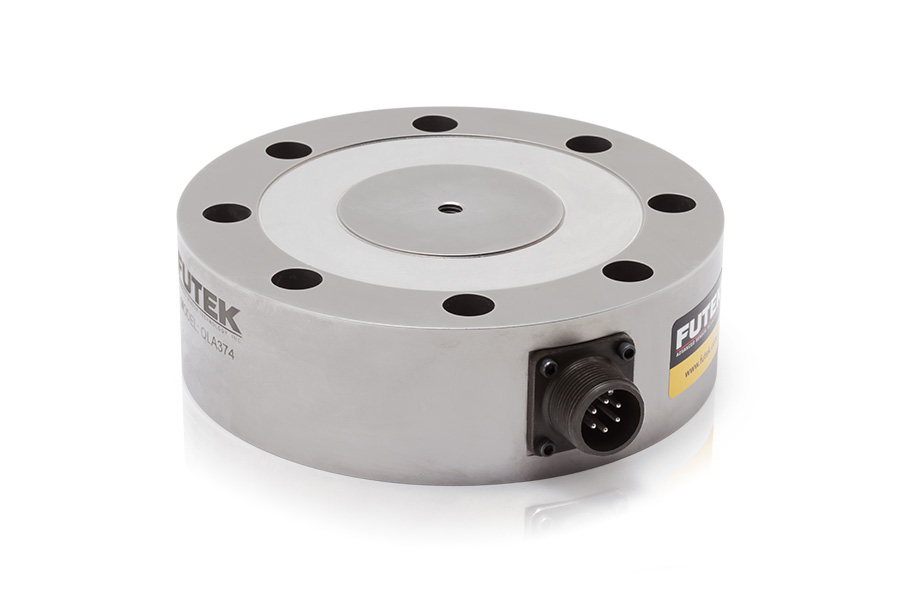

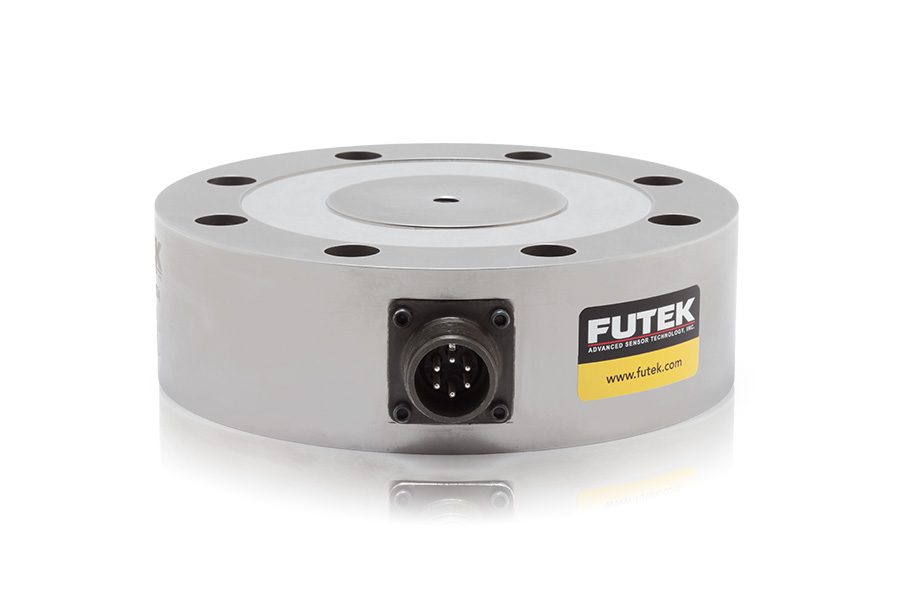

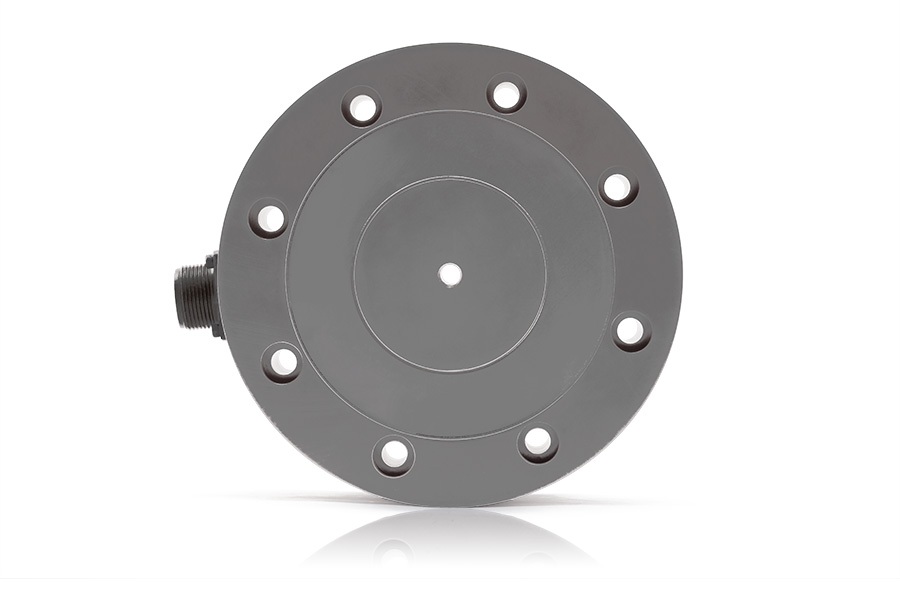

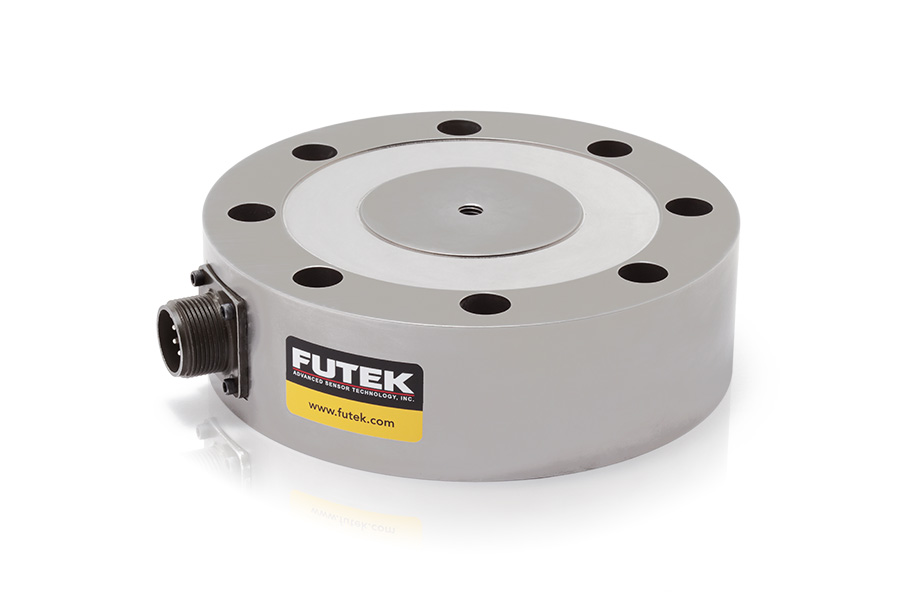

The model QLA374 is a low profile pancake load cell designed for compression applications. The diaphragm has eight countersunk bolt holes along the outer diameter for a flush top surface when mounted. The flexure is made of robust 17-4 precipitation-hardened stainless steel, providing a capacity of 50,000 lb (22679 kg). This load cell offers a nonlinearity of ± 0.2% and is equipped with temperature compensation.
This model also features a robust 6 pin aerospace-grade connector and has the option of TEDs compatibility.
Features
- Low profile design
- For use in compression
- Highly resistant to off-axis loading
- 14-4PH stainless steel construction
- Optional TEDs compatibility
- 6 pin aerospace-grade connector
Sensor
$12,998.00
$0.00*
While supply lasts
Instrument
$0.00
Accessories
$0.00
Calibration
$0.00
02/03 - Select Output Type
QSH01670
QLA374 , 50000 lb , Custom Compression Pancake Load Cell , Material 17-4 PH S.S. , M8x1.25 , 6 Pin Bendix Receptacle MS3102-14S-6P
