Custom Donut Load Cell

QLA298 , 10000 N , Custom Donut Load Cell , Safe Overload 35000 N Temp Compensation Range 15 to 40 C , Material - 17-4 PH S.S. , 2.84" [72 mm] ID , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 6 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

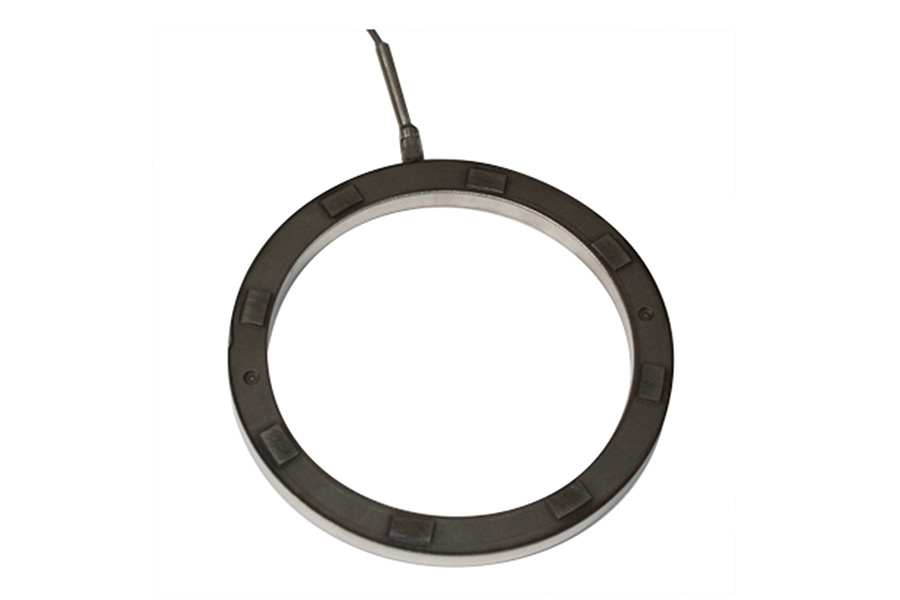

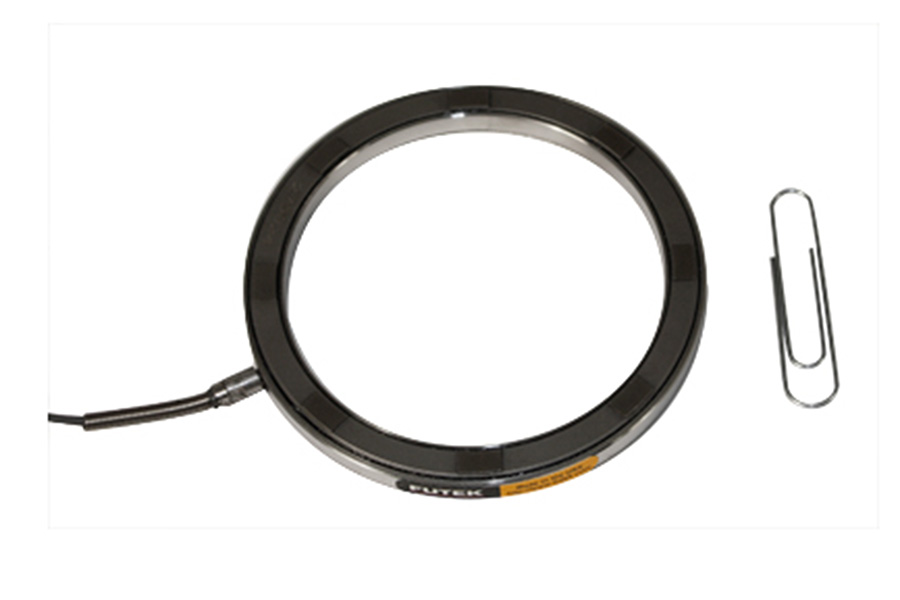

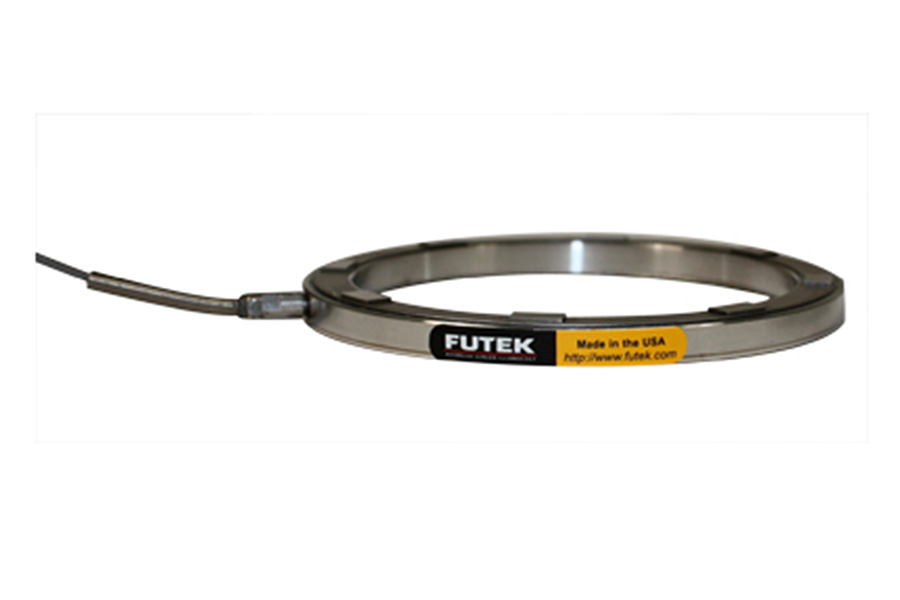

Model QLA298 is a custom donut load cell with a unique low-profile design. It stands at 0.28 in (7.1 mm) in height, with an outer diameter of 3.47 in (88.1 mm) and an inner diameter of 2.84 in (72.1 mm). It offers a rated capacity of 2250 lb (10 kN), with a safe overload protection of 7875 lb (35 kN). It is constructed from 17-4 PH stainless steel. It also features a #29 AWG, 4 Conductor shielded silicone cable 6 ft (2 m) long with built-in strain relief.

Features

Designed for use in compression
Integrated cable includes strain-relief
Unique low-profile design

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Performance

	CHANNEL	MIN	TYP	MAX	UNIT
Capacity	1			10000	N
