Custom Miniature Load Column Load Cell w/ Male Thd

QLA336 , 500 lb , Custom Miniature Load Column Load Cell w/ Male Threaded Base, Material - 17-4 PH S.S, M5x0.8 Thread , 34 Awg 4 Conductor Braided Cable , 30 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

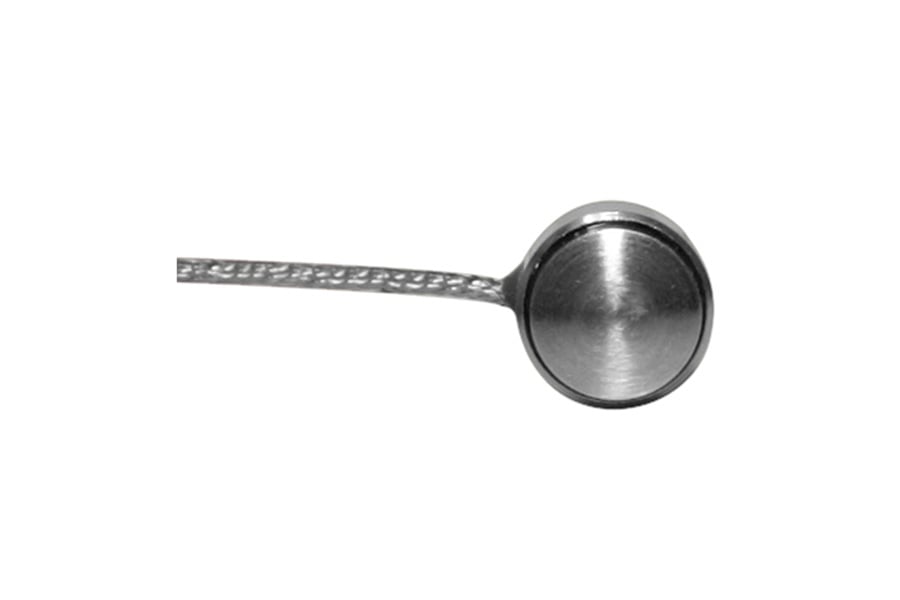

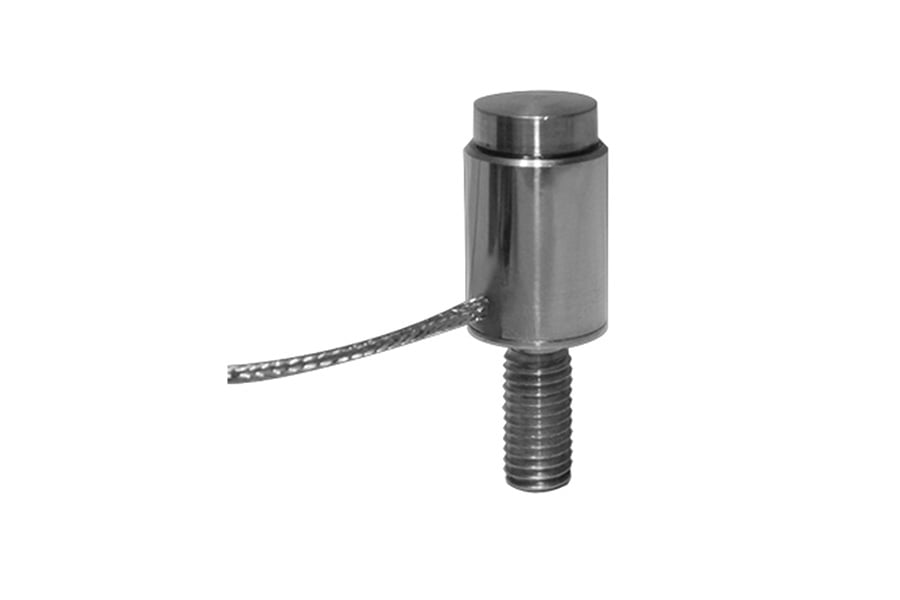

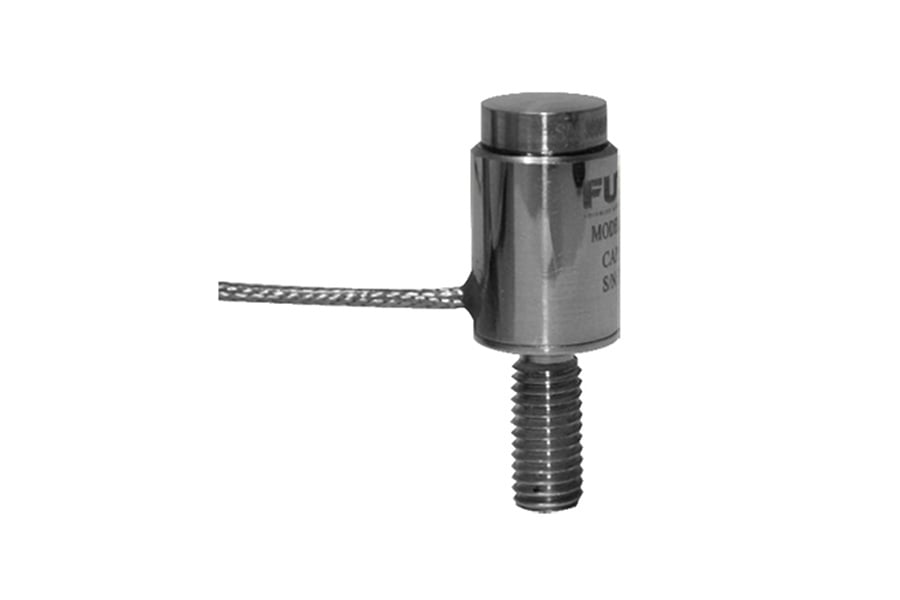

Model QLA336 is a custom miniature column load cell with male threaded base (M5x0.8). It offers a rated capacity of 500 lb (2224 N), with a safe overload protection of 1500 lb (6672 N). With a diameter of 0.394” (10 mm) and a height of 0.53” (13.3mm), it is ideal for tight spaces. It is constructed of stainless steel, with a raised surface radius to lower the possibility of off-center loading. It features a male threaded base (M5x0.8) for easy installation. This load cell is designed to measure loads in compression and is thermally compensated for 60 to 160 °F (15 to 71 °C). It offers a nonlinearity of ±2.0% of the Rated Output. It includes a 34 AWG 4 conductor shielded cable 30 ft (9m) long.

Features

Low deflection
Small profile for tight spaces
Fast response time

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		15	Vdc
Input Resistance	1		350		Ohms nom.
Safe Overload	1			300	% of R.O.
Capacity	1			500	lbs
Hysteresis	1	-1		1	% of R.O.
Nonlinearity	1	-2		2	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-40		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-2		2	% of R.O.
