QSH01574 Custom Tension and Compression Load Cell, Quad Bridge

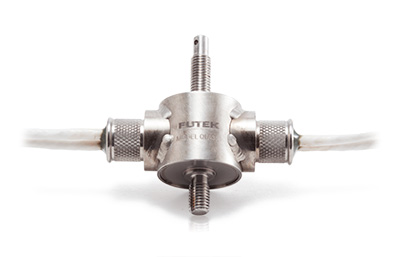

Model QLA356 is a custom tension and compression load cell that is designed to measure forces up to 250 lbs (~113 kg). It is a flight-rated sensor capable of operating under cryogenic and vacuum conditions. It has a quad-bridge output for maximum reliability. Constructed of robust 15-5 PH Stainless Steel, it features ¼-28 male-male mounting provisions and includes a 26 Awg M27500-26TM4S09 Cable, 14 ft (4.3 m) long.
Features
- Designed to operate in cryogenic conditions
- Flight-rated and vacuum compatible
- Quad bridge output for maximum reliability
QSH01574Change
QLA356 , 250 lb , Custom Cryogenic Flight Rated / Vacuum Compatible / Low Outgassing Tension & Compression Load Cell , Quad Bridge , Material - 15-5 PH S.S. , 1/4-28-Thread , 26 Awg M27500-26TM4S09 Cable, 14 ft long, (Engineering Units)
