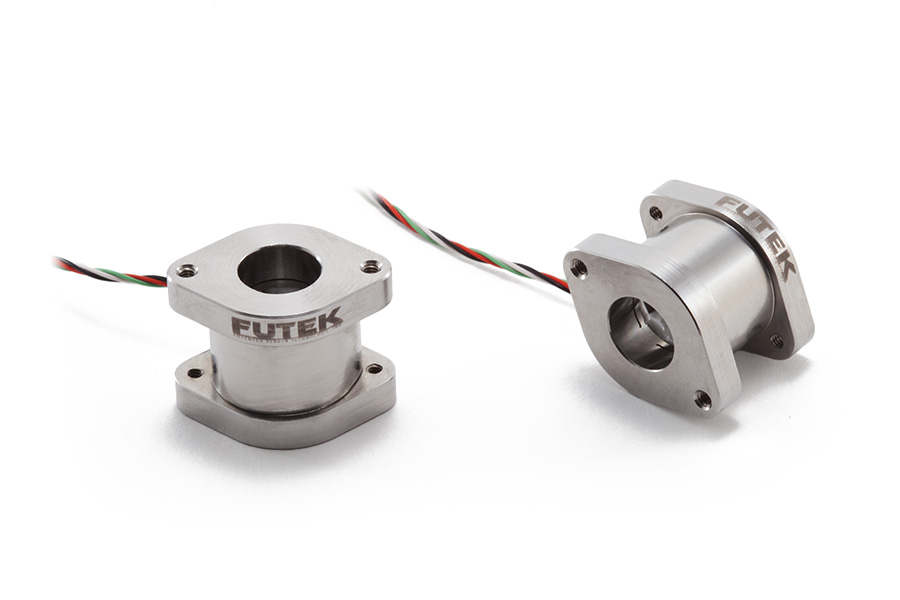

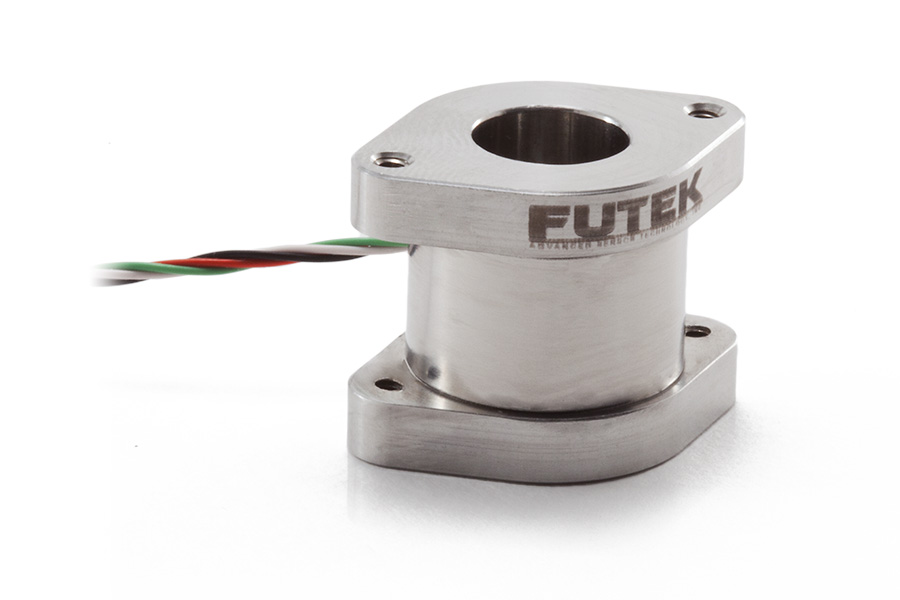

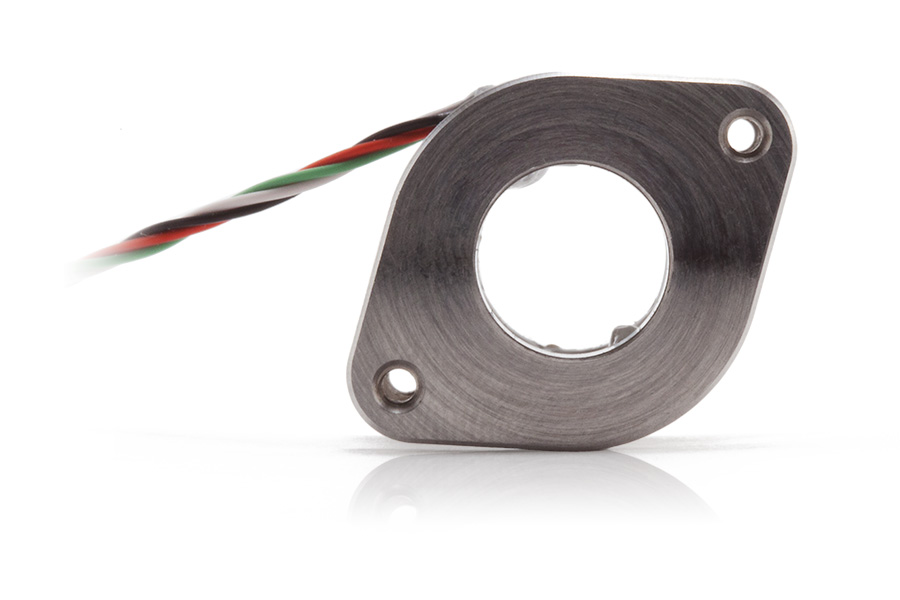

Model QLA249 is a custom compression flange mount load cell designed for use in compression applications. It stands at 0.71” (18.0 mm) tall, with a thru-hole diameter of 0.35” (9.0 mm). It features 2x female threaded M2x0.4 – 6H female mounting provisions at each flange for easy installation. It is constructed from 17-4 PH stainless steel, guaranteeing a nonlinearity of ± 0.25% of its rated output. The #29 AWG 4 conductor Teflon output cable is 6 in (0.15 m) in length and is fully integrated into the
design.
