Subminiature Custom Load Button with Mounting Stud

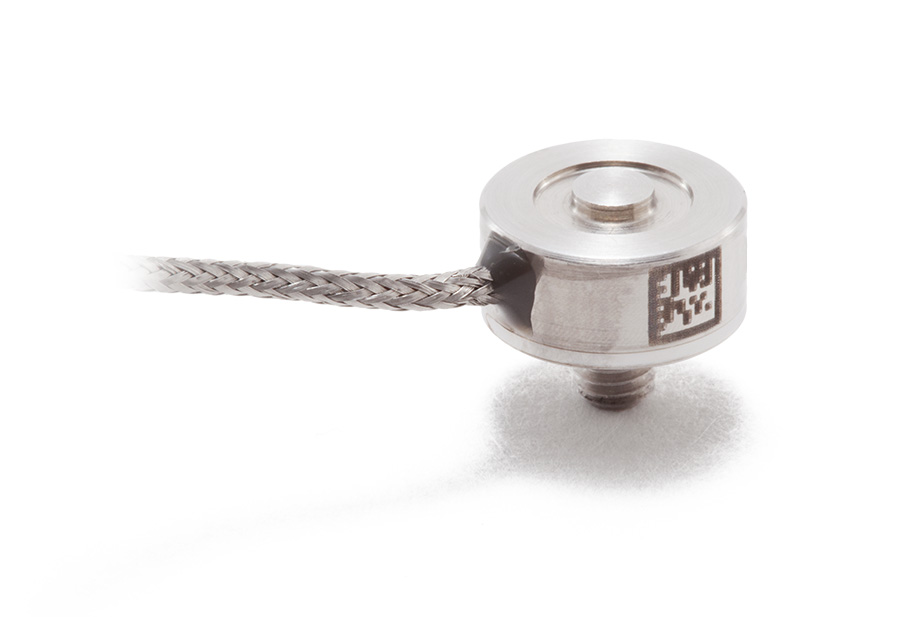

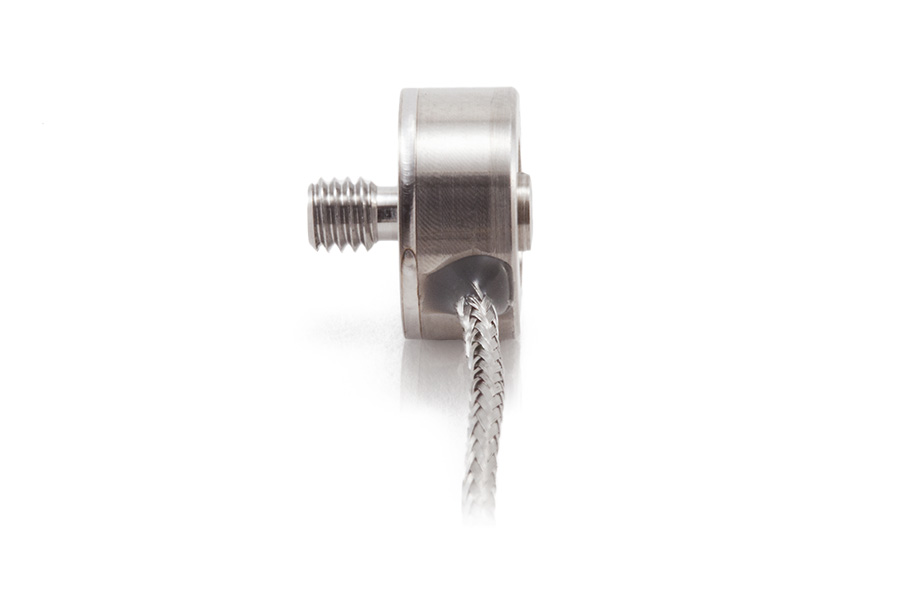

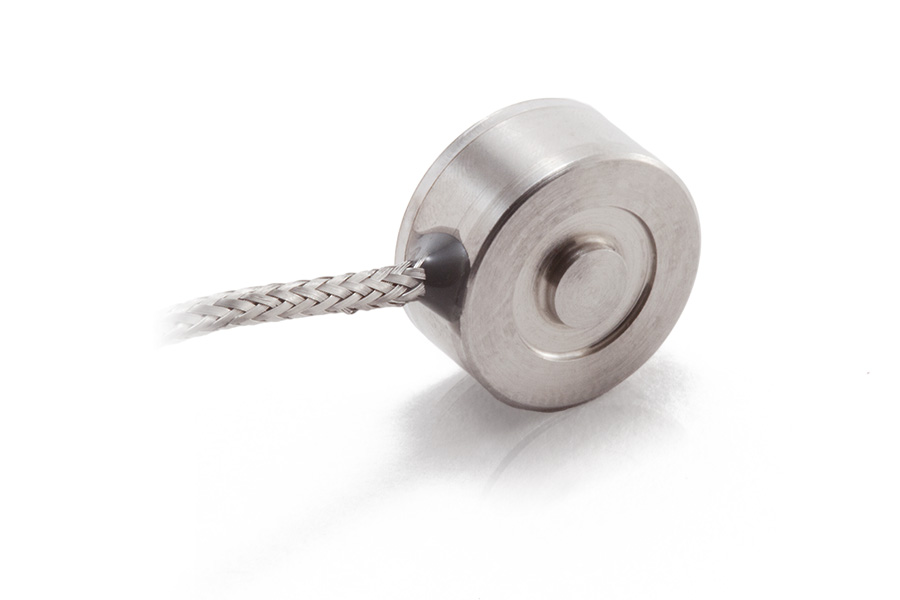

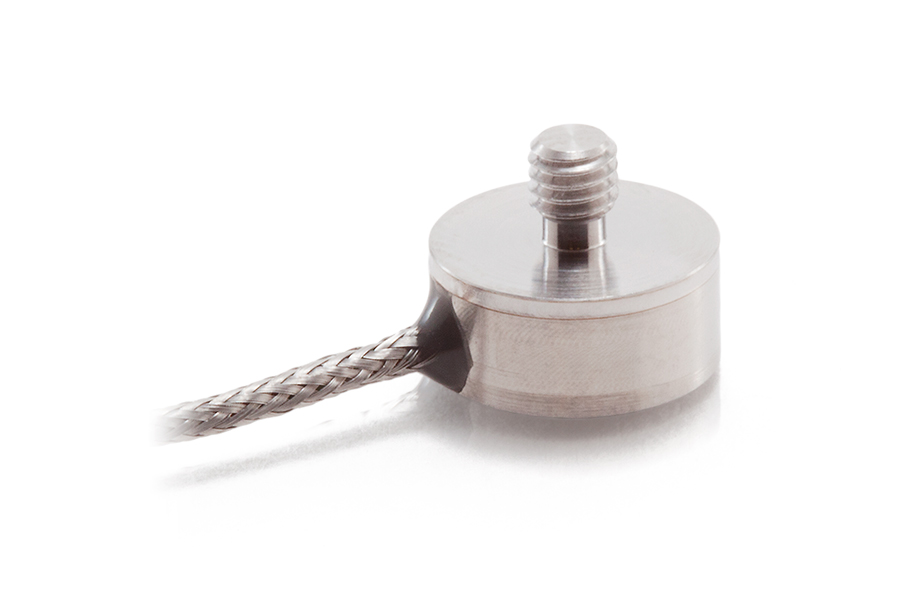

QLA385 , 100 lb , Custom Compression Load Button Load Cell w/ M3x0.5 Mounting Stud , RoHS , Material - 17-4 PH S.S. , 34 Awg 4 Conductor Braided Cable , 5 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Sub-miniature Load Button Load Cell with 100 lb [445 N] capacity, 0.375 in [9.53 mm] OD x 0.19 in [4.8 mm] H, and 5 ft long integrated cable. We offer a version with or without a male M3x0.5 threaded stud.

Features

Sub-Miniature 0.375 in [9.53 mm] OD x 0.19 in [4.8 mm] H size
17-4 S.S. Construction
Male M3x0.5 Threaded Stud For Mounting

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		5		Vdc
Excitation	1	1		7	Vdc
Input Resistance	1		350		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			125	% of R.O.
Capacity	1			100	lbs
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-0.5		0.5	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1.5		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-6		6	% of R.O.

Alternative Models

LLB210 FSH02710

LLB210 , 50 lb , Subminiature Threaded Load Button , 0.38 in [9.5 mm] H x 0.17 in [4.3 mm] H with 0.15 in 3.8 mm] L Male Thread , Material - 17-4 PH S.S. , #2-56-Thread , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long

Spec Sheet
