QTA142 play_arrowQSH01864

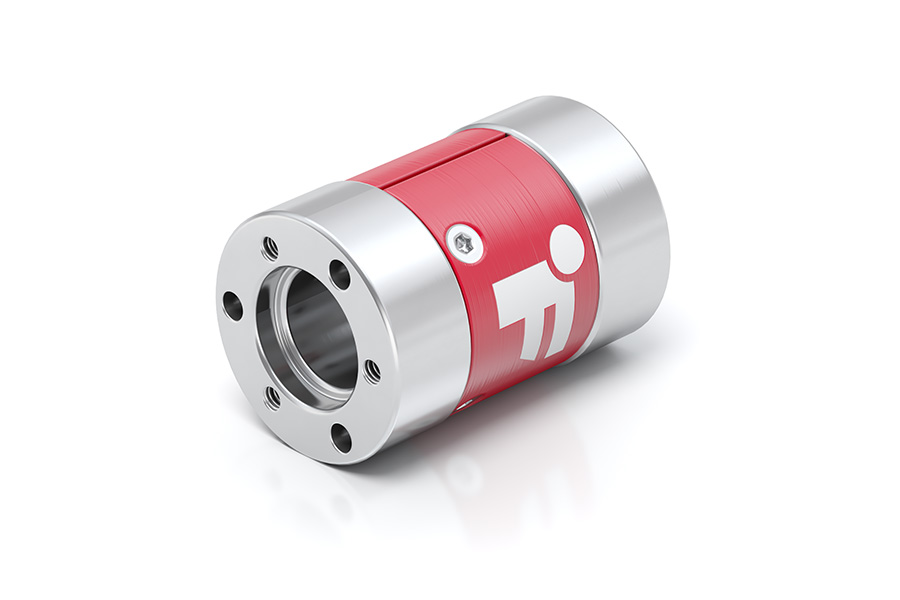

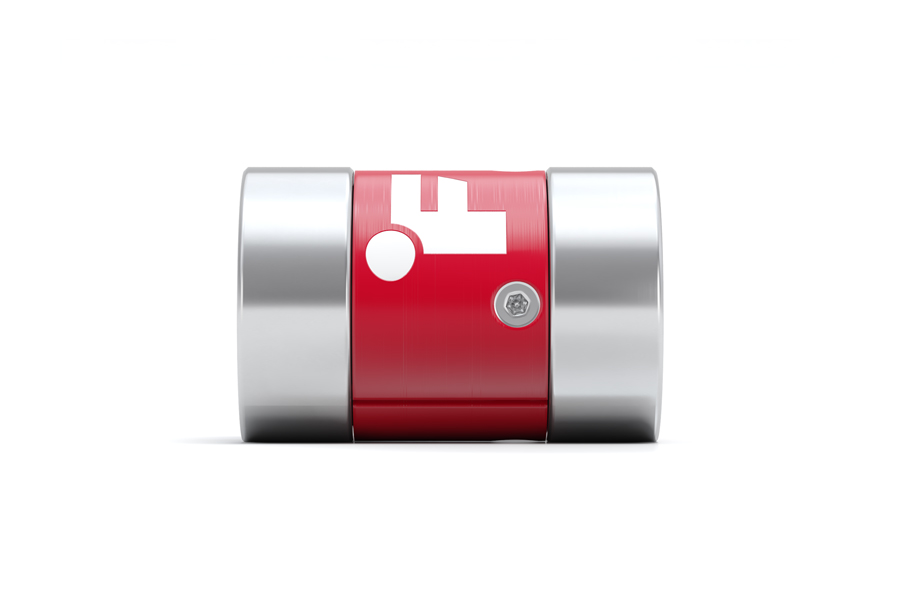

Custom High Temperature Reaction Torque Sensor

QTA142 , 20 Nm , Custom High Temperature Flange To Flange Reaction Torque Sensor , RoHS Compliant , 1" [25.55 mm] OD x 1.5" [38.1 mm] H x 0.47" [12mm] ID , Operating Temperature up to 365 F [185 °C] , 34 Awg 4 Conductor Cable , 20 in
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description

Custom High Temperature Reaction Torque Sensor

Features
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
5
Vdc
Excitation
1
1
10
Vdc
Input Resistance
1
700
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
20
N-m
Hysteresis
1
-0.2
0.2
% of R.O.
Nonlinearity
1
-0.2
0.2
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
Output Resistance
1
700
Ohms nom.
Rated Output
1
2
mV/V nom.
Compensated Temperature
1
60
365
F
Operating Temperature
1
-60
365
F
Temperature Shift Span
1
-0.01
0.01
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
