Strain Gauge Analog Amplifier with Differential Output

IAA300 , Ultra Low Noise Signal Conditioning Differential Strain Gauge Voltage Amplifier , For Full Bridge , +/-5 VDC , +/-10 VDC , Up to 50 kHz Bandwidth , Screw Terminal Connectors , Red Powder Coated , Integrated DIN Clip
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
load cell amplifier signal conditioner module IAA300
load cell amplifier signal conditioner module IAA300
IAA300
IAA300
IAA300
IAA300
IAA300
Description

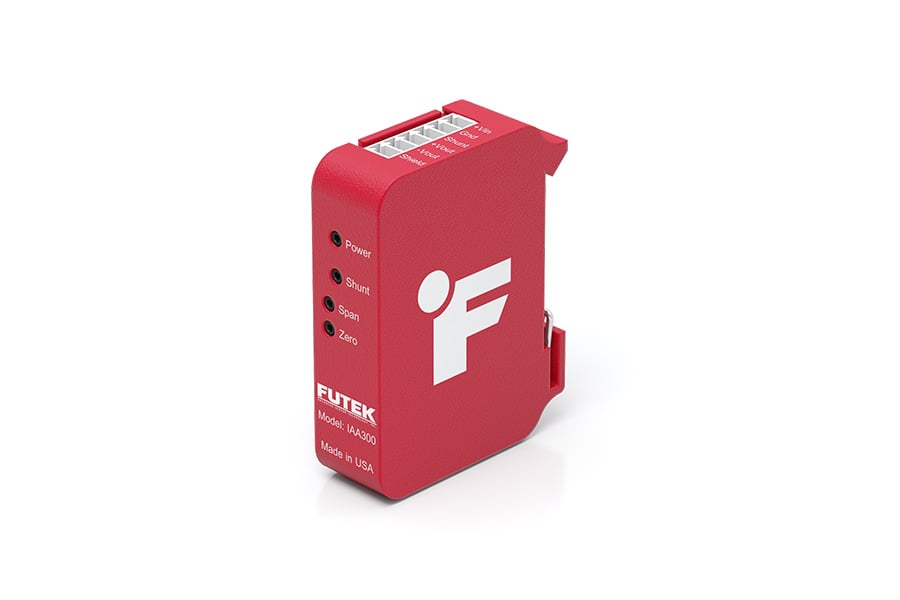

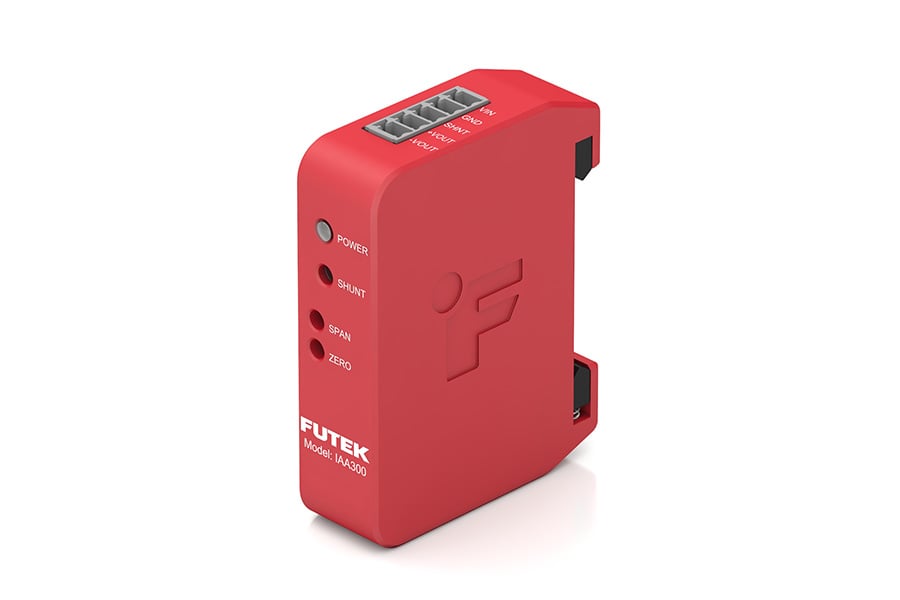

The IAA300 Differential Strain Gauge Amplifier is FUTEK’s brand new general purpose amplifier solution for in-line amplification of any full bridge strain gauge type sensor with mV/V range output. As our fastest amplifier, the IAA300 features up to 50 kHz bandwidth. The new model combines precision and ease of integration. The IAA300 features an aluminum housing with an integrated DIN clip designed for industrial environment applications.

Features
  • Differential Input, Differential Output
  • Ultra low noise output load cell amplifier
  • Up to 50 kHz bandwidth
  • ± 5 or ± 10 VDC Outputs
  • Bridge Excitation: 5 or 10 VDC (DIP Switch)
  • Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0 mV/V (DIP Switch)
  • 256 Selectable Shunt Combinations: 30kΩ, 43.7kΩ, 60.4kΩ, 87.6kΩ, 100kΩ, 150kΩ, 300kΩ, 432kΩ (DIP Switch)
  • 5 Selectable Bandwidths (DIP Switch)
  • Externally Accessible Shunt Cal Activation Button
  • Internal Span and Offset Potentiometers
  • Sensor Polarity Reversal DIP Switch
Videos
video
Application Focus: Endurance Testing
video
FUTEK's IAA Amplifier Series Overview and Setup
video
IAA300: Overview Video
Specifications
Electrical
Mechanical
Performance
Set-up
Temperature
CHANNELMINTYPMAXUNIT
Bandwidth
1000
50000
Hz
Excitation
5
Vdc
10
Vdc
Input Range
0.5
10
mV/V nom.
Weight
0.2
lbs
Analog Output
10
Vdc
-10
Vdc
5
Vdc
-5
Vdc
Nonlinearity
-0.01
0.01
% of R.O.
Power Supply
12.5
26
Vdc
Operating Temperature
32
158
F
Storage Temperature
-40
185
F
