Flat Plate Force Sensor

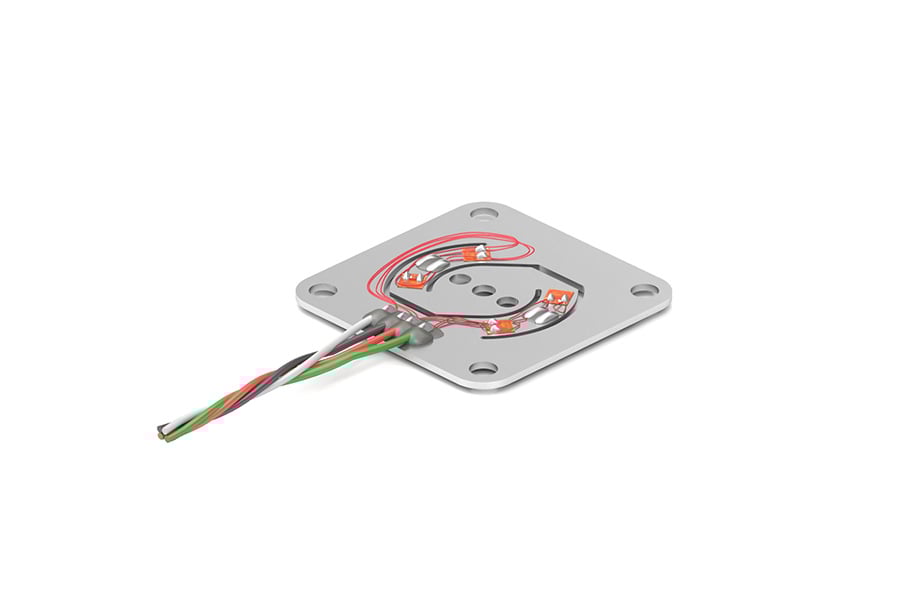

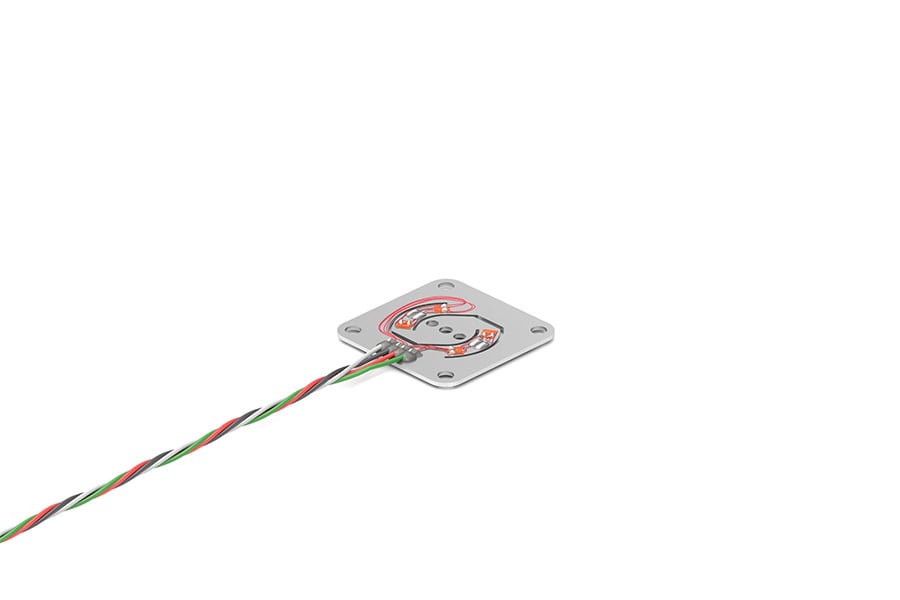

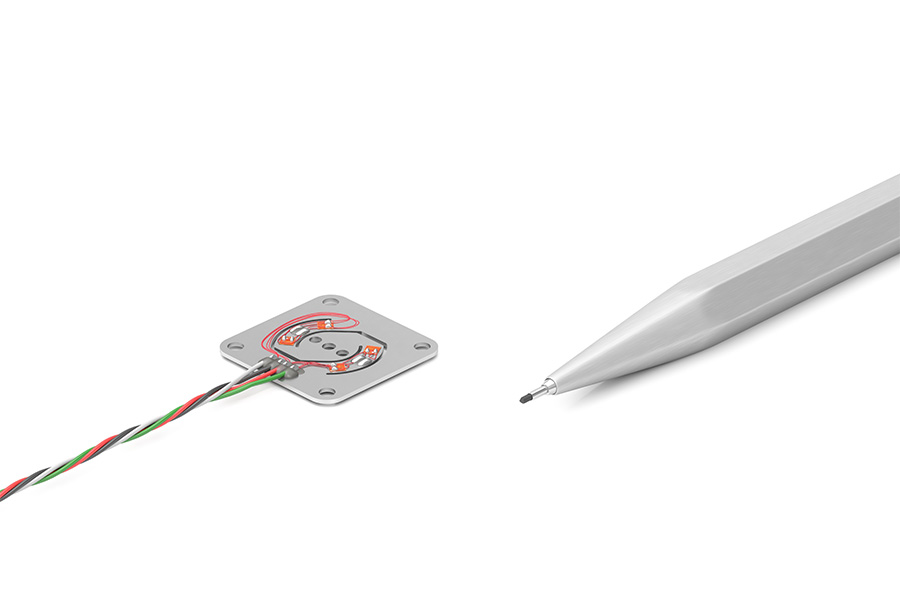

FFP350 , 1 lb , Flat Plate Force Sensor Tension & Compression Load Cell , OEM , 0.95" [24 mm] L & W x 0.05" [1.28 mm] H , Material - 300 Series S.S. , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long

Spec Sheet

3D Model Download

Listed price is in U.S. currency and subject to verification along with availability

Description

FUTEK’s FFP350 Force Sensor is designed for measuring force, surface pressure, and displacement. These sensors are a cost effective and reliable OEM solution for high volume applications. The FFP350 Force Sensor incorporates the balancing, compensating and conductive elements into its strain gauge which is laminated on to the 300-Stainless Steel flexure. With its thin, miniature design, the FFP350 Force Sensor is also useful in applications where vertical space is limited. It is available in a 1 lb capacity and it is ideal for use in process control, medical instrumentation, robotics, and automotive applications. The FFP350 Force Sensor is manufactured in USA.

FFP350 Flat Plate Force Sensor is also used in semiconductor supply chain management systems for weighing / tracking of parts for inventory management.

Features

Designed for OEM use
High Volume force measurement Applications
Light Weight: 2.8 g
Low Cost Force Sensor

Technical Documents

Resources

FFP350 - Mounting Guide

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		5		Vdc
Excitation	1	1		10	Vdc
Input Resistance	1		350		Ohms nom.
Safe Overload	1			150	% of R.O.
Capacity	1			1	lbs
Hysteresis	1	-0.25		0.25	% of R.O.
Nonlinearity	1	-0.25		0.25	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1.5		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-5		5	% of R.O.
