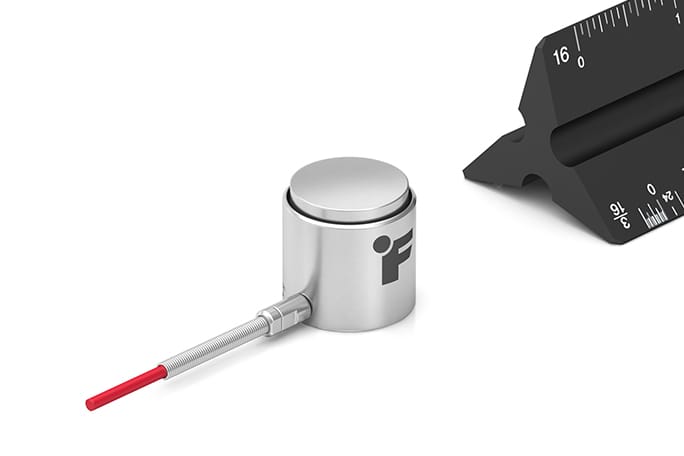

Miniature Load Column Load Cell

LCA305 , 7500 lb , Miniature Load Column Load Cell , Material - 17-4 PH S.S. , Submersible , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long

Spec Sheet

Extraneous Load Factor

Listed price is in U.S. currency and subject to verification along with availability

Description

Column Load Cell (Miniature)

FUTEK’s Column Load Cell (Miniature) offers an impressive compact design for high capacity applications. With a diameter of 0.88”, it is ideal for tight spaces. The LCA305 Column Load Cell (Miniature) is offered in 17-4PH Stainless Steel in 7,500 to 10,000 lbs, with a raised surface radius to lower the possibility of off center loading.

The Column Load Cell (Miniature) is designed to measure loads in compression. This model is manufactured in US, and similar to our entire Load Cell product line, uses metal foil strain gauge technology. Additional design features include the use of a strain relief providing much greater protection from the pull on the cable.

Product Highlights:

Low Deflection
Compression
Small profile for tight spaces
High Capacity Miniature Load Column/Canister Load Cell

For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK’s VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK LCA Series is also available with TEDS / IEEE1451.4 option.

Features

Low Deflection weight sensor
Compression
Small profile for tight spaces
High Capacity Miniature Load Column/Canister Load Cell

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		350		Ohms nom.
Safe Overload	1			150	% of R.O.
Capacity	1			7500	lbs
Hysteresis	1	-1		1	% of R.O.
Nonlinearity	1	-1		1	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
Zero Balance	1	-1		1	% of R.O.
