rod end actuator load cell
LCB450

Fatigue Rated Rod End Load Cell

4 Products
settings
Item Number
Load Capacity
Thread Size
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Environmental Conditions
Features
Output Type
Connection Type
# Of Bridges/channels
Connector Type
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Weight In Lb
Custom Special
Connection Code
Mechanical Overload Protection
Safe Overload
Fatigue Rated
Integrated Teds
5000 lb
1-14
1.73
4.5
2.565
1.73
Fatigue Rated, RoHS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.1 %RO
200 F
-60 F
18 VDC
0.5 %RO
372 Ohm
IP64
17-4 PH S.S.
LCB450 , 5000 lb , High Capacity Load Cell (Rod End/Fatigue Rated) , RoHS Compliant , Material - 17-4 PH S.S. , 1-14-Thread , Fatigue Rated , 6 Pin Bendix Receptacle, PT02A-10-6P
160 F
60 F
1.25
N
CC1
No
300 %RO
Yes
No
10000 lb
1-14
1.73
4.5
2.565
1.73
Fatigue Rated, RoHS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.1 %RO
200 F
-60 F
18 VDC
0.5 %RO
372 Ohm
IP64
17-4 PH S.S.
LCB450 , 10000 lb , High Capacity Load Cell (Rod End/Fatigue Rated) , RoHS Compliant , Material - 17-4 PH S.S. , 1-14-Thread , Fatigue Rated , 6 Pin Bendix Receptacle, PT02A-10-6P
160 F
60 F
1.25
N
CC1
No
300 %RO
Yes
No
20000 lb
1-14
1.73
4.5
2.565
1.73
Fatigue Rated, RoHS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.1 %RO
200 F
-60 F
18 VDC
0.5 %RO
372 Ohm
IP64
17-4 PH S.S.
LCB450 , 20000 lb , High Capacity Load Cell (Rod End/Fatigue Rated) , RoHS Compliant , Material - 17-4 PH S.S. , 1-14-Thread , Fatigue Rated , 6 Pin Bendix Receptacle, PT02A-10-6P
160 F
60 F
1.25
N
CC1
No
300 %RO
Yes
No
20000 lb
1-14
1.73
4.5
2.565
1.73
Water Resistance
Fatigue Rated, RoHS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.1 %RO
200 F
-60 F
18 VDC
0.5 %RO
372 Ohm
IP65
17-4 PH S.S.
LCB450 , 20000 lb , High Capacity Fatigue Rated Rod End Load Cell , RoHS Compliant, Material - 17-4 PH S.S. , 1-14-Thread , Special Water Resistant IP65 Rated , 6 Pin Bendix Receptacle , PT02A-10-6P
160 F
60 F
1.25
Y
CC1
300 %RO
Yes

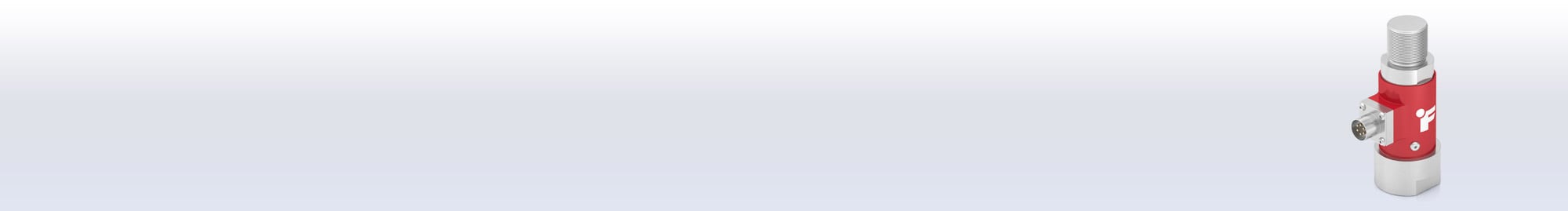

Model LCB450 is a High Capacity Fatigue Rated Load Cell (Rod End) for Inline Actuators or Hydraulic Jacks with Male/Female Threads. The standard LCB450 High Capacity Load Cell (Rod End) model has male/female threads and Robust Bendix Receptacle. It uses 17-4 Stainless Steel and weighs approximately 20 oz. This model is well suited for the mid range to high range capacity requirements (5,000 lb – 20,000 lb). For any applications that require a lower capacity range, please refer to the LCB200 and LCB400. This High Capacity Fatigue Rated Load Cell (Rod End) has high accuracy and high stiffness. It has Nonlinearity of ±0.5%, and Deflection of 0.0014" to 0.0032" nominal.


Commonly industrial applications involving electric actuators require the precise measurement of the load being applied by the actuator, and thus a linear actuator with force sensor is required (e.g. force controlled linear actuator). LCB450 load cell is suitable for direct mounting on the cylinder rod. They can, for example, be used to measure contact forces or overloads.


For other high capacity load cell models, check out  LLB450 high capacity load button and LCA700 high capacity load column.

rod end actuator load cell
rod end actuator load cell
rod end actuator load cell
