LSB200 play_arrowFSH03867

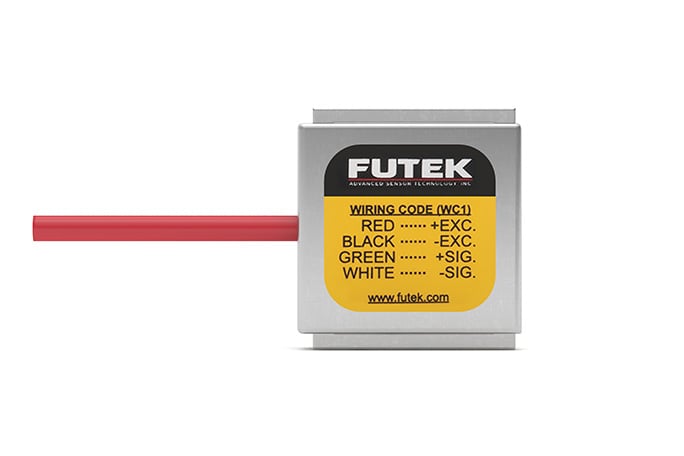

Miniature S-Beam Jr.® Load Cell

LSB200 , 10 g , S-Beam Jr.® Load Cell , RoHS Compliant , Material - 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
Extraneous Load Factor Extraneous Load Factor
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

This compact Miniature S-Beam Jr.® Load Cell has become a signature low-capacity, high-resolution miniature load cell in FUTEK’s catalog. It is suitable for a wide range of applications, especially those that require high durability and accuracy in a small footprint.

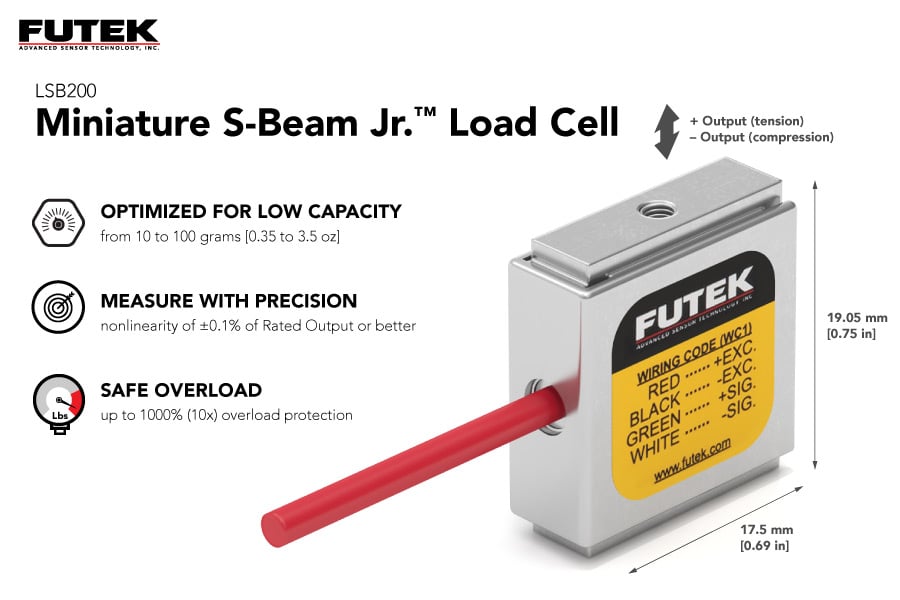

The LSB200 model’s design is optimized for low capacities — from 10 to 250 grams [0.35 to 8.8 oz]. Within this capacity range, LSB200 delivers nonlinearity of only ±0.1% of rated output and withstands up to 1000% (10x) overload protection. These features, together with its small size (height is 0.75 [0.19 mm]) makes this force sensor one of our most sought-after models. It is compatible with our USB digital interface signal conditioner solutions.

For higher capacities ranging from 1 to 100 lbs [0.45 to 45 kg], please see our latest LSB205 Miniature S-Beam Jr.® Load Cell.

Features
  • Miniature size: height of only 0.75 in [19 mm]
  • Up to 10x overload protection in tension and compression
  • Lightweight force sensor
  • Nonlinearity ±0.1% of rated output or better
  • Loads up to 1000 grams [35 oz]
LSB200 Original Miniature S-Beam Load Cell
Capacity low-capacity — from 10g to 250g
Connection type integrated cable
Integrated electronics n/a
LSB201 Same base, enhanced features
Capacity 250g to 100lb
Connection type integrated cable
Integrated electronics n/a
LSB205 Same base, maximum capacity
Capacity 1lb to 100lb
Connection type 7-pin connector
Integrated electronics IEEE1451.4 TEDs chip and PT1000 temperature sensor
Videos
video
Application Focus: Endurance Testing
video
LSB200 Installation Tool
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
5
Vdc
Shunt Calibration
1
301
kOhm
Excitation
1
1
10
Vdc
Input Resistance
1
1000
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
1000
% of R.O.
Capacity
1
10
Gram
Hysteresis
1
-0.1
0.1
% of R.O.
Nonlinearity
1
-0.1
0.1
% of R.O.
Nonrepeatability
1
-0.05
0.05
% of R.O.
Output Resistance
1
1000
Ohms nom.
Rated Output
1
0.5
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-60
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Related Instruments
IAA100 play_arrow FSH03863
IAA100 , Full Bridge Strain Gauge Signal Conditioning Voltage Amplifier , +/-5 VDC , +/-10 VDC Output , 5 VDC Offset DIP Switch , Up to 25 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , Integrated 35 mm DIN Clip
IAA105 play_arrow FSH04453
IAA105 , Bluetooth® Configurable Full Bridge Strain Gauge Signal Conditioning Voltage Amplifier , Multiple Options Between +/-10 VDC , Up to 10 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , 35 mm DIN Clip
IAA200 play_arrow FSH03864
IAA200 , Full Bridge Strain Gauge Signal Conditioning Current Transmitter , 4-20 mA Output , 12 mA Offset DIP Switch , Up to 25 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , Integrated 35 mm DIN Clip
IAA200 play_arrow QSH02025
IAA200 , Full Bridge Strain Gauge Signal Conditioning Current Transmitter , 0-20 mA Output, Up to 25 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , Integrated 35 mm DIN Clip
IAA300 play_arrow FSH03931
IAA300 , Ultra Low Noise Signal Conditioning Differential Strain Gauge Voltage Amplifier , For Full Bridge , +/-5 VDC , +/-10 VDC , Up to 50 kHz Bandwidth , Screw Terminal Connectors , Red Powder Coated , Integrated DIN Clip
IAC200 play_arrow FSH02126
IAC200 , Non-Amplified Full Bridge Strain Gauge Load Cell Summing Junction Box , 1-4 Channel , IP65/NEMA 4X Rating , Material - Polyurethane , mV/V Input & Output
IAC200 play_arrow FSH04736
IAC200 , Amplified Full Bridge Strain Gauge Load Cell Summing Junction Box w/ Voltage Output , 1-4 Channel , IP65/NEMA 4X , Material - Polyurethane , mV/V Input & 0-5 VDC, +/-5 VDC, 0-10 VDC, +/-10 VDC Analog Output , Up to 25 kHz Bandwidth
IAC200 play_arrow FSH04737
IAC200 , Amplified Full Bridge Strain Gauge Load Cell Summing Junction Box With Current Output , 1-4 Channel , IP65/NEMA 4X Rating , Material - Polyurethane , mV/V Input & 4-20 mA Analog Output , Up to 25 kHz Bandwidth
IDA100 play_arrow FSH03912
IDA100 , High Speed & High Resolution Programmable Analog Amplifier w/ 1 kHz Bandwidth & Up To 4800 SPS USB Output , +/-5 VDC or +/-10 VDC Analog Output , Powered By USB , Red Powder Coated Aluminum Enclosure, Integrated DIN Clip
IHH500 play_arrow FSH03460
IHH500 Elite , Intelligent Digital Handheld Display , mV/V , VDC , Current , and Encoder Measurement , Analog Output , Alarm Relays , TEDS , and USB Output - Accessory Kit (FSH03583) With All Mating Connectors and SENSIT® Software Included
IHH500 play_arrow FSH03571
IHH500 Pro , Intelligent Digital Handheld Display , mV/V , VDC , & mA Measurement , Analog Output , Alarm Relays , TEDS & USB Output , Only Power Supply Adapter is included
IPM650 play_arrow FSH03633
IPM650 Pro , Intelligent Panel Mount , mV/V , VDC , Current Measurement , Analog Output , Alarm Relays , TEDS and USB Output
Related Accessories
AAA999 play_arrow GOD00372
SHUNT RESISTOR 1/4 Watt, 0.1%, Metal Film, 25 ppm, 301 Kohm (F1950-10) (SHUNT)
HRDWAR play_arrow MCP02406
Installation Tool For LSB200/LSB201/LSB205/LSB210/LRM200 , 22 AWG Thick , 6061-T6 , Red Anodized
LRM200 play_arrow MCP02499
Thread Adapter M3x0.5 Male to #6-32-2A Male
LRM200 play_arrow MCP02497
Thread Adapter M3x0.5 Male to 1/4-28 Male
LRM200 play_arrow MCP02498
Thread Adapter M3x0.5 to #10-32-2A Male
LRM200 play_arrow MCP02500
Thread Adapter M3x0.5 Male to M6x1 Male
XAC100 play_arrow MCP01165
XAC100 , Convex Spherical Stainless Steel Load Button with Inline M3x0.5 Male Thread, 17-4 PH S.S. Material (F1147-18)
XAC110 play_arrow MCP01161
Load Plate , M3x0.5 Thread , Aluminum Material , 5 lb Max Off-Center Load (Sensors Rating May Be Lower)
Alternative Models
QSH01612
LSB200 play_arrow QSH01612
LSB200 , 10 g , S-Beam Jr.® Load Cell , Material - 2024-T4 , M3x0.5-Thread , Overload Protection , Vacuum Compatible/Low Outgassing , 29 Awg 4 Conductor Spiral Shielded Teflon , 15 ft Long
