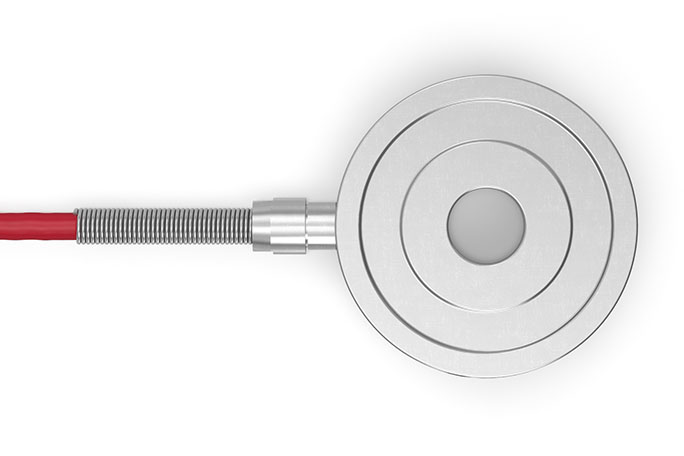

Donut/Through Hole Load Cell

LTH350 , 5000 lb , Donut Load Cell , Material - 17-4 PH S.S. , 1/2" [12.7 mm] ID , 0.25% Accuracy , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

Spec Sheet

3D Model Download

Listed price is in U.S. currency and subject to verification along with availability

Description

Model LTH350 is a Donut Load Cell built for press or inline compression applications. The standard LTH350 Donut Load Cell model has a very robust construction available in 17-4 Stainless Steel, with an I.D. range of 1/4" and up, as well as a 10 feet long 24 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.

The Donut Load Cell offers high accuracy and high stiffness. It has nonlinearity of ±0.5%, deflection of 0.002” nominal and operating temperature of -60° F to 200° F. The standard LTH350 Donut Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping.

Features

Fast response time
Robust strain relief
Compatible in load washer applications
Offered in a variety of capacities and inner diameters
Low power consumption

Technical Documents

Resources

Bolt_Preload_Auditing

Donut Sensor Series Manual

How to reduce electrical noise in your system

LTH Connector Benefits

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			5000	lbs
Hysteresis	1	-0.25		0.25	% of R.O.
Nonlinearity	1	-0.25		0.25	% of R.O.
Nonrepeatability	1	-0.25		0.25	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.005		0.005	% of Load/F
Temperature Shift Zero	1	-0.005		0.005	% of R.O./F
Zero Balance	1	-1		1	% of R.O.
