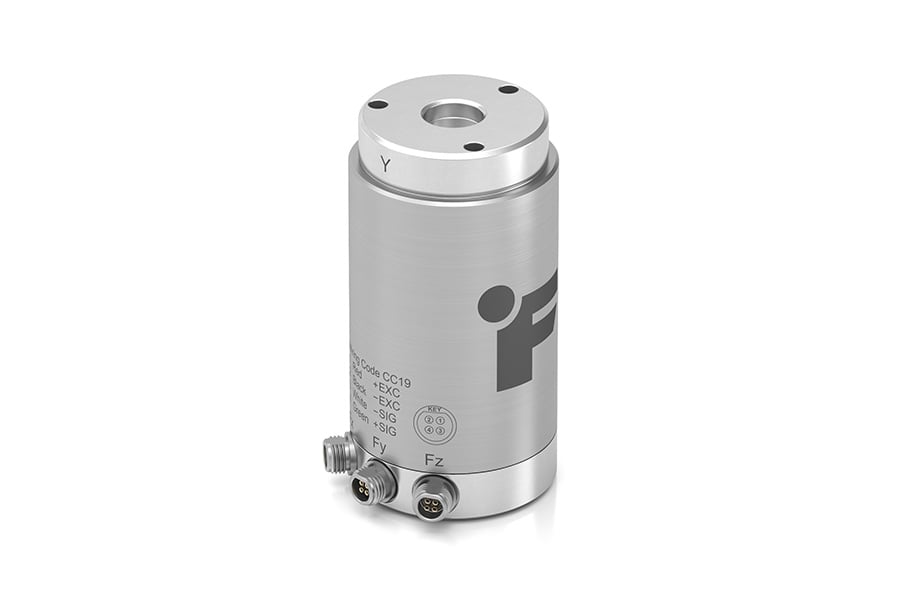

FSH04850 Inline 3 Axis Sensor
The MTA250 Inline Miniature 3 Axis Force Sensor is meticulously engineered for measuring Fx, Fy, and Fz loads in low capacity applications. Despite its relatively small size and low profile (2.55" height x 1.33" diameter), MTA250 3 dof load cell features a 300% safe overload capacity, ensuring robust performance in challenging conditions.
The MTA250 is an excellent sensing solution for End-of-Arm Tooling (EOAT) applications where compact size and lightweight design are critical. Mounted between the robotic wrist and the tool, it provides precise multi-axis force feedback (Fx, Fy, Fz) to enhance the accuracy and repeatability of automated processes.
MTA250 Miniature 3 Axis Load Cell (aka 3 dof load cell or triaxial load cell) is designed for seamless integration, being compatible with the FUTEK USB Series family for precise force registration in decimal points. The connectorized structure not only enables easy assembly but also addresses cable routing concerns, streamlining project execution.
MTA250 is a suitable tri axial force sensor for critial applications such as Haptic Simulation in Dentistry..
Features
- Miniature & Low Capacity
- Compact design for limited spaces and size constraints.
- Low profile, weighing 0.26 lb with dimensions of 2.55" in height and 1.33" in diameter.
- 300% safe overload capacity for resilience in challenging conditions.
- Compatible with FUTEK USB family of digital signal conditioners and amplifiers.
- Connectorized cable for streamlined assembly and servicing.
FSH04850Change
MTA250 , Ch Fx: 10 lb; Ch Fy: 10 lb; Ch Fz: 10 lb , Inline 3 DOF/Axis Load Cell , 33.8 mm OD x 64.8 mm H , M4x0.7-Threads , RoHS Compliant , Material - 2024-T4 Aluminum , 3x 4 Pin Micro Receptacle
