Female Port Pressure Sensor

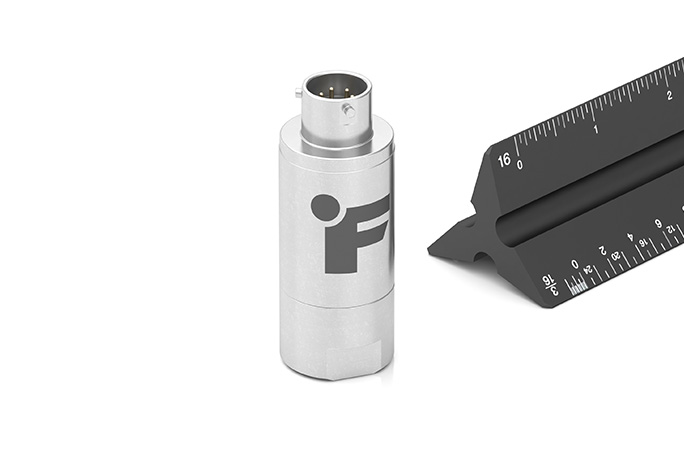

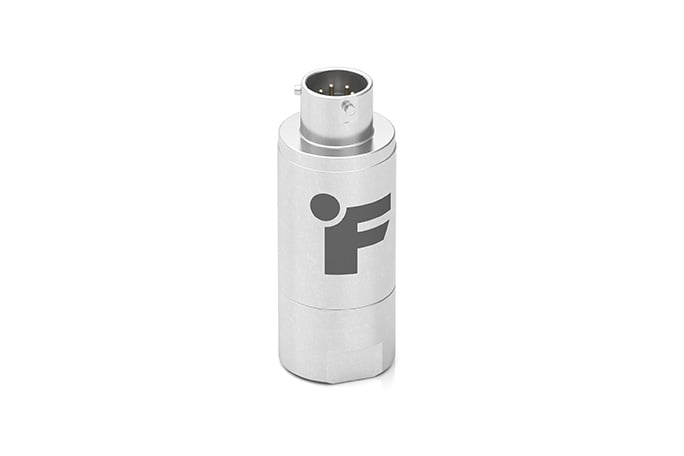

PFP350 , 10000 PSI , Female Port Pressure Sensor , Material - 17-4 PH S.S. , 1/4-18-NPT Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

Spec Sheet

3D Model Download

Listed price is in U.S. currency and subject to verification along with availability

Description

The PFP350 Pressure Sensor (Plug With Cable) is FUTEK’s general Pressure Transducer solution for a variety of pressure measurement applications depending on the specifications required. Utilizing metal foil strain gauge technology, the PFP350 is has ultra-fast response, is made from 17-4 Stainless Steel, weighs 4.5 oz, [127 g] and it has mV/V output range as a standard and amplified VDC or 4-20mA per request. This product line is manufactured in USA.

What to learn more about strain gauge pressure transducer working principle? Visit our "How does a pressure transducer work" page.

Features

Ultra-Fast Response
High Reliability & Stability Metal Foil Strain Gauge Technology
17-4 Stainless Steel Construction
Female Pressure Port
Weight: 4.5 oz [128 g]
mV/V Output
Amplified version available

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		350		Ohms nom.
Insulation Resistance	1	500
Safe Overload	1			150
Capacity	1			10000	PSI
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-0.5		0.5	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160
Operating Temperature	1	-60		250
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-1		1	% of R.O.
