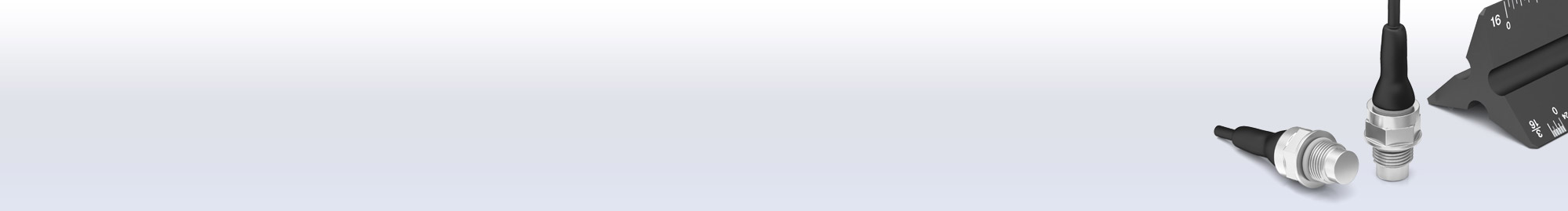

miniature pressure sensor PFT510 strain gauge pressure transducer
PFT510

Flush Mount Diaphragm Miniature Pressure Sensor

8 Products
settings
Item Number
Pressure Capacity
Pressure Type
Output Type
Thread Size
Connection Type
Wetted Material
Height In Inches
Length In Inches
Width In Inches
Outer Diameter In Inches
Max Operating Temperature
Min Operating Temperature
Nonrepeatability
Nonlinearity
Input Resistance
Safe Overload
Features
Environmental Conditions
Cable Length
Connector Type
Ip / Nema Rating
Cable Type
Weight In Lb
Custom Special
Description
225 psi
Gage
mV/V
M10x1
Cable
17-4 ph S.S.
1.14
0.55
0.55
0.55
194 F
-40 F
0.02 %RO
0.8 %RO
350 Ohm
150 %RO
Water Resistance
5 ft
IP65
29 Awg 4 Conductor Spiral Shielded Silicone Cable
0.02204623
N
PFT510 , 225 PSI , Miniature Flush Mount Diaphragm , 17-4 PH S.S. , M10x1-Thread, Relative , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
750 psi
Gage
mV/V
M10x1
Cable
17-4 ph S.S.
1.14
0.55
0.55
0.55
194 F
-40 F
0.02 %RO
0.8 %RO
350 Ohm
150 %RO
RoHS
Water Resistance
5 ft
IP65
29 Awg 4 Conductor Spiral Shielded Silicone Cable
0.02204623
N
PFT510 , 750 PSI , Miniature Flush Mount Diaphragm , RoHS Compliant , Material - 17-4 PH S.S. , M10x1-Thread , Relative, 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
1450.38 psi
Gage
mV/V
3/8-24
Cable
17-4 ph S.S.
1.14
0.55
0.55
0.55
194 F
-40 F
0.02 %RO
0.8 %RO
350 Ohm
150 %RO
Water Resistance
10 ft
IP65
29 Awg 4 Conductor Spiral Shielded Silicone Cable
0.02204623
Y
PFT510 , 100 Bar , Miniature Flush Mount Diaphragm , Material - 17-4 PH S.S. , 3/8-24-Thread , Relative , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long
3000 psi
Gage
mV/V
M10x1
Cable
17-4 ph S.S.
1.14
0.55
0.55
0.55
194 F
-40 F
0.02 %RO
0.8 %RO
350 Ohm
150 %RO
RoHS
Water Resistance
5 ft
IP65
29 Awg 4 Conductor Spiral Shielded Silicone Cable
0.02204623
N
PFT510 , 3000 PSI , Miniature Flush Mount Diaphragm , RoHS Compliant, Material - 17-4 PH S.S. , M10x1-Thread , Relative , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
7500 psi
Gage
mV/V
M10x1
Cable
17-4 ph S.S.
1.14
0.55
0.55
0.55
194 F
-40 F
0.02 %RO
0.8 %RO
350 Ohm
150 %RO
Water Resistance
5 ft
IP65
29 Awg 4 Conductor Spiral Shielded Silicone Cable
0.02204623
N
PFT510 , 7500 PSI , Miniature Flush Mount Diaphragm , 17-4 PH S.S. , M10x1-Thread , Relative , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
225 psi
Compound
mV/V
M10x1
Cable
17-4 ph S.S.
0.99
0.55
0.55
0.55
194 F
-40 F
0.02 %RO
0.5 %RO
350 Ohm
150 %RO
RoHS
Vacuum Rated
3 ft
IP60
26 Awg 4 Conductor Teflon Cable
0.02204623
Y
PFT510 , -14.5 to 225 PSIG , Custom Miniature Flush Mount Diaphragm Pressure Sensor , Vacuum Compatible/Low Outgassing , RoHS , 17-4 PH S.S. , 3/8-24-Thread , 0.65" Long Max Strain Relief , 26 Awg 4 Conductor Non-Jacketed Cable , 3 ft Long
2175.57 psi
Gage
mV/V
3/8-24
Cable
17-4 ph S.S.
0.59
0.55
0.55
0.55
194 F
-15 F
0.02 %RO
0.5 %RO
370 Ohm
Fatigue Rated
3 ft
IP65
26 Awg 2 Conductor Spiral Teflon Cable
0.02204623
Y
PFT510 , 150 Bar , Miniature Flush Mount Diaphragm , Custom OEM Version , Material - 17-4 PH S.S. , 3/8-24-Thread , Relative , 0.65" Long Max Strain Relief , 26 Awg 4 Conductor Non-Jacketed Cable , 3 ft Long
7251.89 psi
Gage
mV/V
3/8-24
Cable
17-4 ph S.S.
1.14
0.55
0.55
0.55
194 F
-40 F
0.02 %RO
0.8 %RO
370 Ohm
150 %RO
3 ft
IP65
29 Awg 4 Conductor Spiral Shielded Silicone Cable
0.02204623
Y
PFT510 , 500 Bar , Miniature Flush Mount Diaphragm , Matched Output 1.7 mV/V +/-1% , Material - 17-4 PH S.S. , 3/8-24-Thread , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 3 ft Long

The PFT510 Miniature Pressure Sensor (Miniature Flush Mount Diaphragm) is FUTEK’s general Miniature Pressure Sensor solution for a variety of pressure measurement applications depending on the specifications required. Utilizing metal foil strain gauge technology, the PFT510 Pressure Transducer is made from 17-4 Stainless Steel, weighs 25 grams, and it has mV/V output range as a standard. This product line is manufactured in USA.

What to learn more about strain gauge pressure transducer working principle? Visit our "How does a pressure transducer work" page.
