QPA113 play_arrowQSH01721

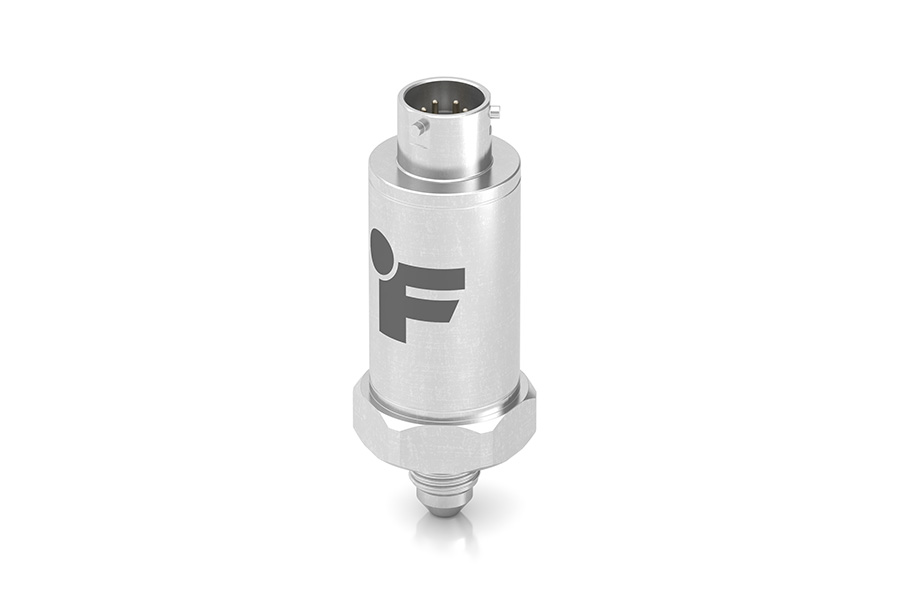

Custom Pressure Sensor with Male SAE Fitting

QPA113, 5000 psi , Custom Pressure Sensor, 0-10 VDC Output, Material- S.S., RoHS Compliant, Male 7/16-20 UNF SAE with 37º Flare Thread, Relative, 6 Pin PT01H-10-6P Style Connector (Pin A: Supply, Pin B & C: Common, Pin D: Output)
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Custom Pressure Sensor with Male SAE Fitting

Features
Specifications
Calibration
Electrical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
18
Vdc
Excitation
1
13
24
Vdc
Capacity
1
5000
PSI
Hysteresis
1
-0.15
0.15
% of R.O.
Nonlinearity
1
-0.25
0.25
% of R.O.
Nonrepeatability
1
-0.05
0.05
% of R.O.
Rated Output
1
9.9
10
10.1
Vdc
Compensated Temperature
1
60
160
F
Operating Temperature
1
-4
176
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
