Idler Sheave Pin Load Cell

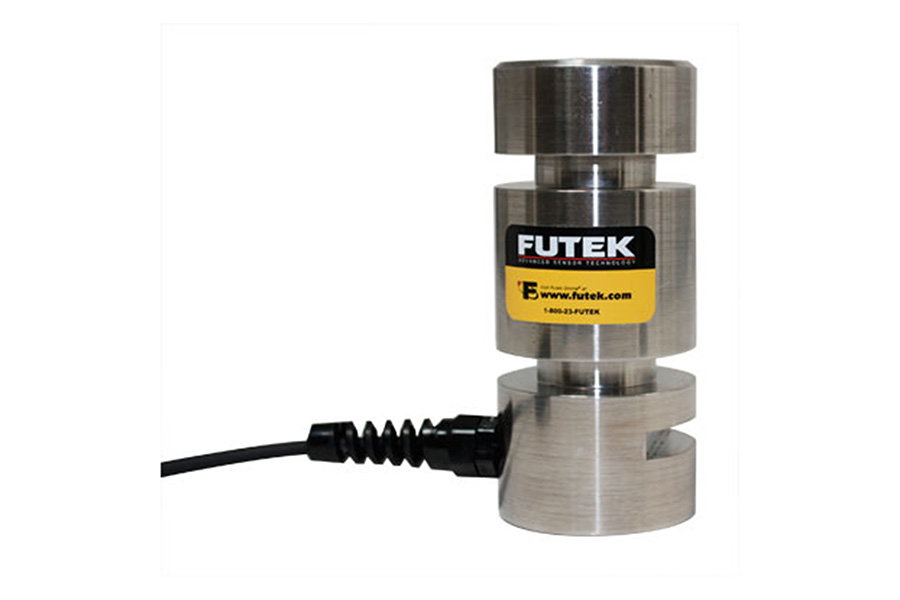

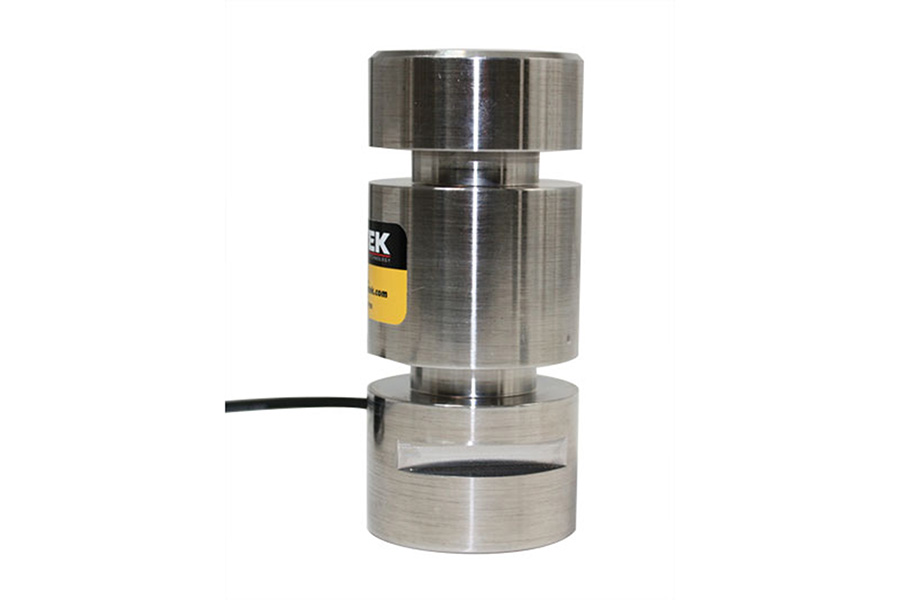

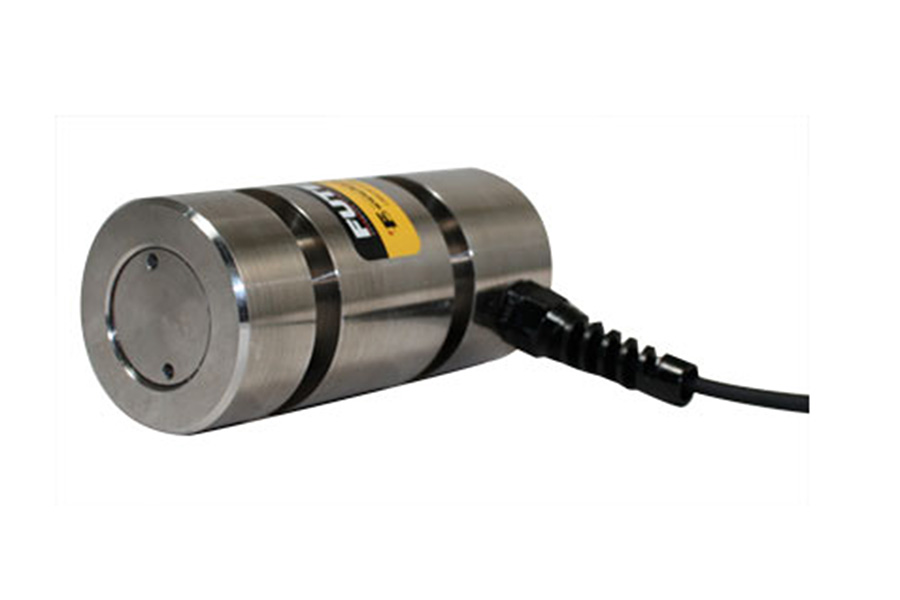

QLA183 , 7500 lb , Idler Sheave Pin , Load Pin , Clevis Pin Load Cell , 1.999" [50.77 mm] OD , Material - 17-4 PH S.S. , 2" Shaft Long , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Features

Features an anti-rotation slot to provide accurate measurements
Integrated strain relief for output cable
Multi-Axis options available

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		18		Vdc
Excitation	1	18		18	Vdc
Input Resistance	1		350		Ohms nom.
Safe Overload	1			150	% of R.O.
Capacity	1			7500	lbs
Hysteresis	1	-3		3	% of R.O.
Nonlinearity	1	-3		3	% of R.O.
Nonrepeatability	1	-0.25		0.25	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		1.5		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1			200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
