IAA200 play_arrowQSH02025

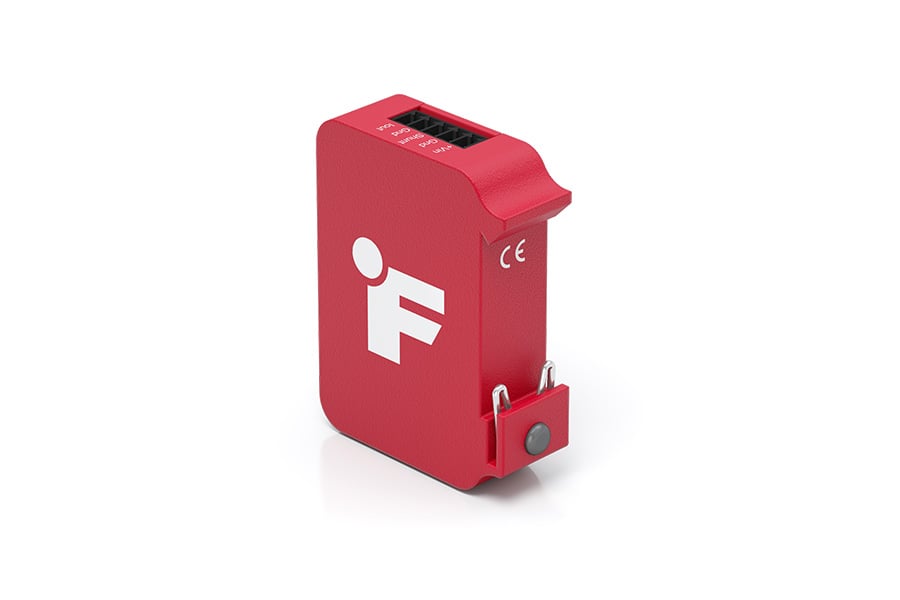

Strain Gauge Analog Amplifier with Current Output

IAA200 , Full Bridge Strain Gauge Signal Conditioning Current Transmitter , 0-20 mA Output, Up to 25 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , Integrated 35 mm DIN Clip
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
Listed price is in U.S. currency and subject to verification along with availability
load cell amplifier signal conditioner module IAA200
load cell amplifier signal conditioner module IAA200
current analog strain gauge load cell amplifier signal conditioner IAA200
current analog strain gauge load cell amplifier signal conditioner IAA200
current analog strain gauge load cell amplifier signal conditioner IAA200
IAA200
IAA200
Description

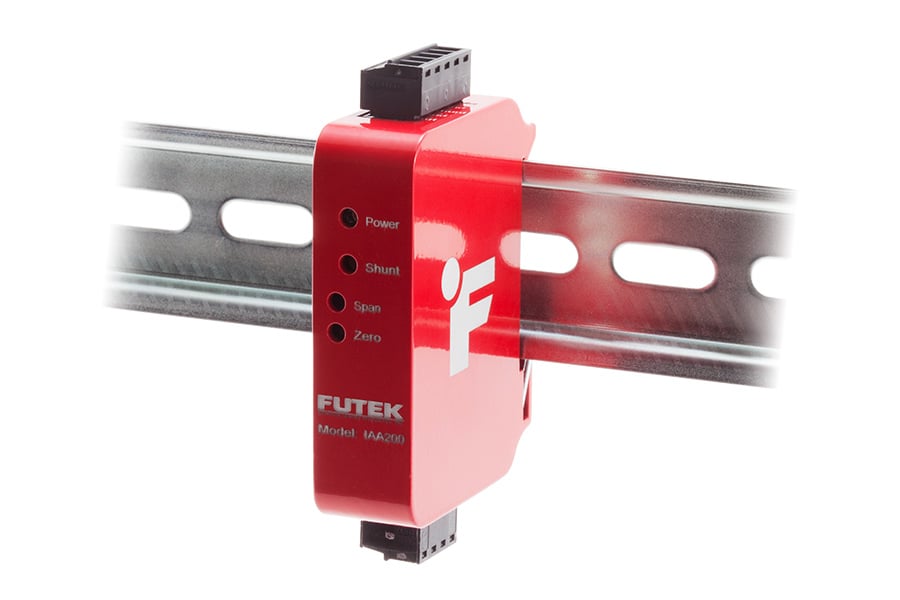

FUTEK's IAA200 Analog Amplifier with Current Output is FUTEK’s brand new general purpose amplifier solution for in-line amplification of any full bridge strain gauge type sensor with mV/V range output. The new model combines precision and ease of integration with a total error of 0.01% of full scale reading. The IAA200 features an aluminum housing with an integrated DIN clip designed for industrial environment applications.


Features
  • Uni-directional/Bi-directional Output, Differential Input
  • 0-20 mA Output load cell amplifier
  • Bridge Excitation: 5 or 10 VDC (DIP Switch)
  • Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0
