mV/V, Amplified and Encoder Input USB Solution

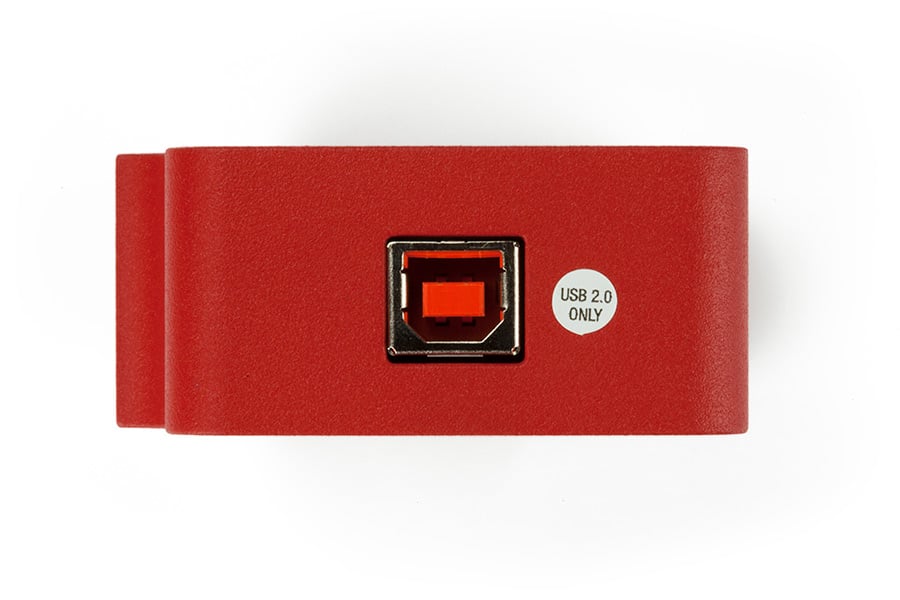

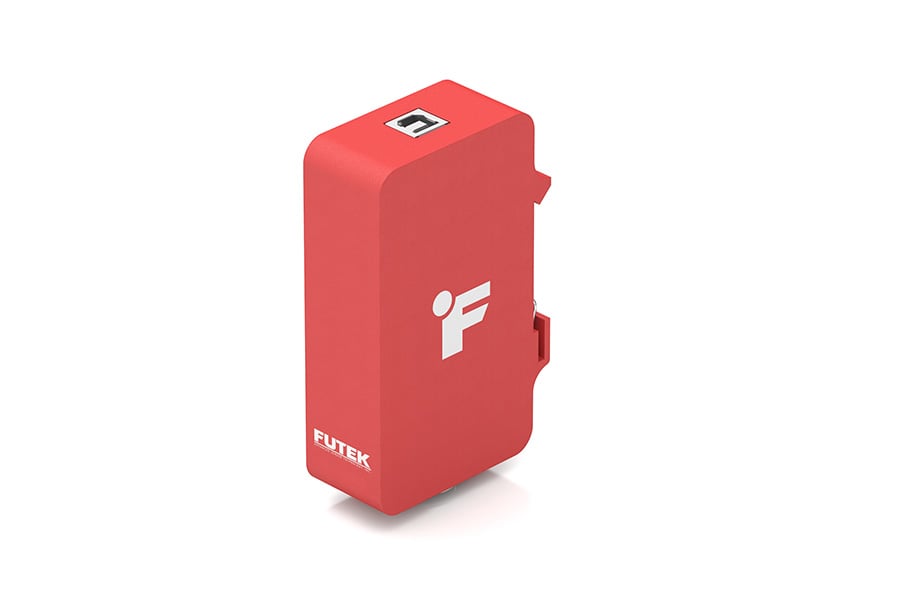

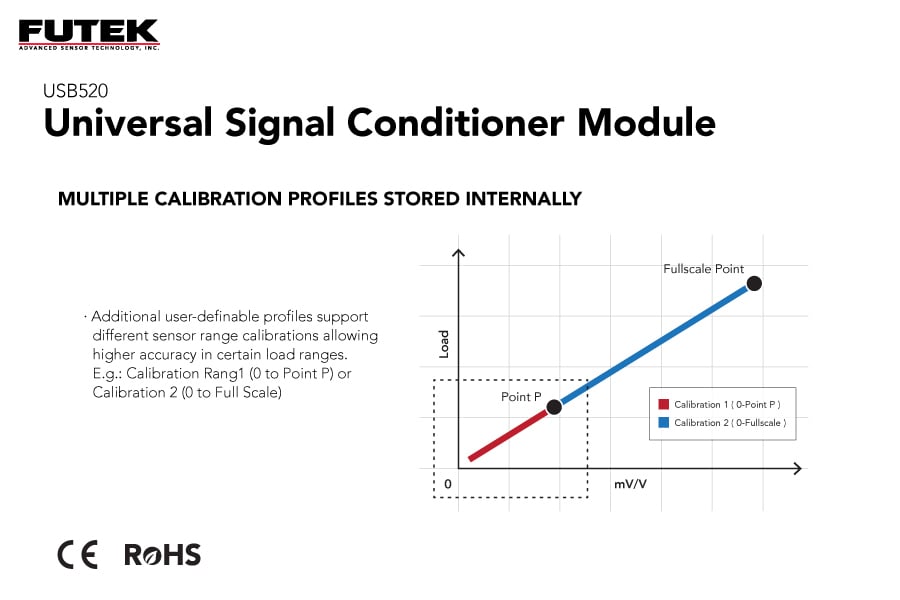

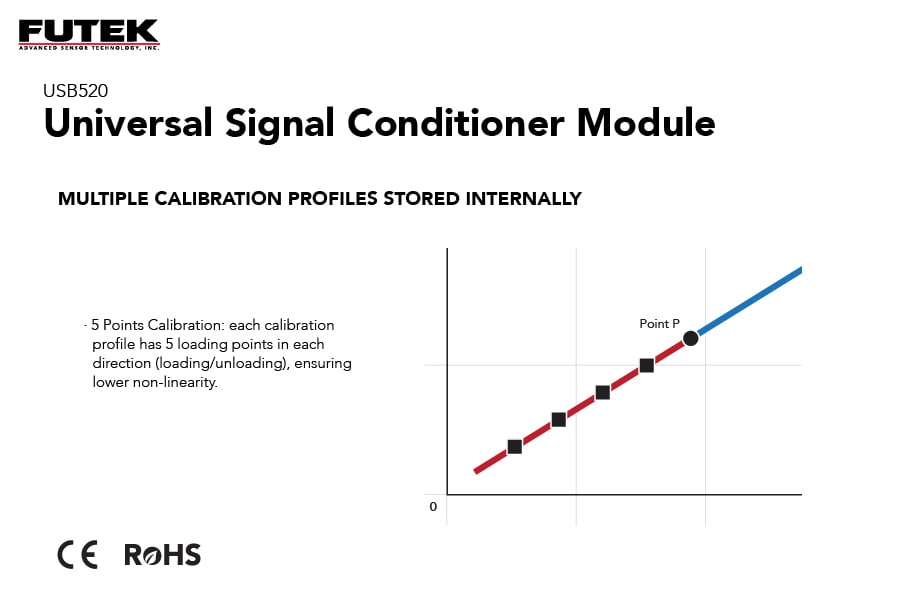

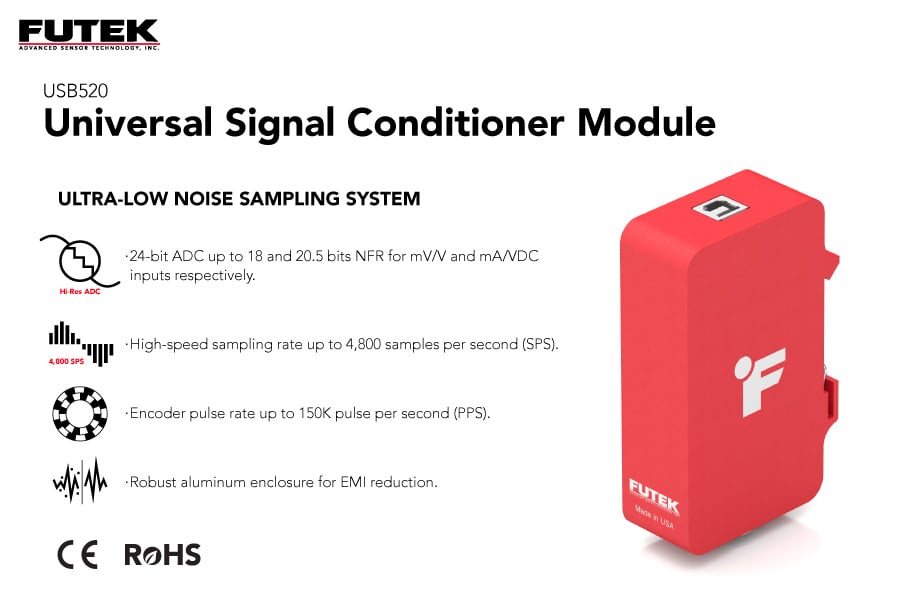

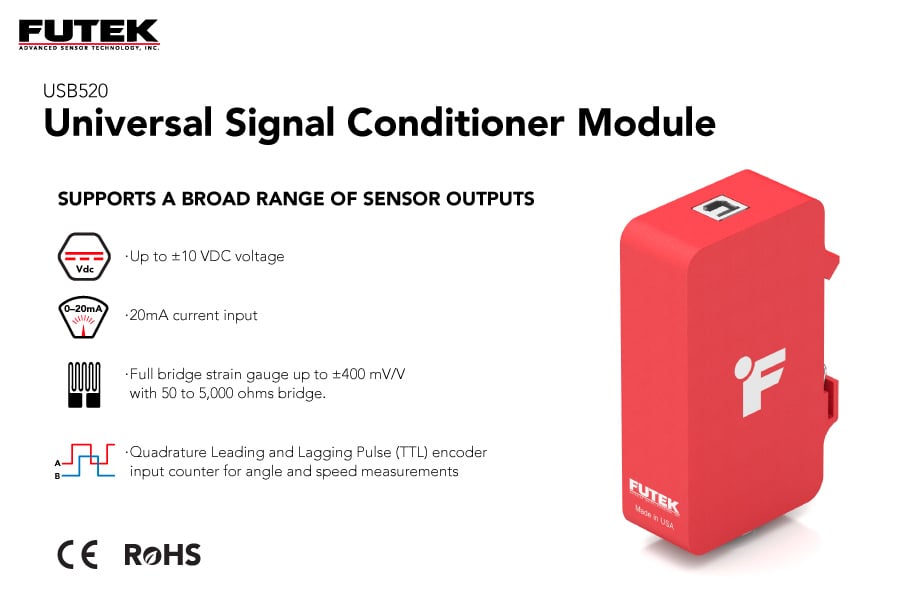

USB520 , High Speed & Resolution External USB Output Kit , Up To 20.5 Bits Noise Free , Strain Gauge mV/V & Amplified +/-10 VDC/4-20 mA Inputs Up to 4800 SPS & Encoder TTL Inputs Up to 10 SPS , 35 mm DIN Clip , Powered Off Of USB 2.0 Only

Spec Sheet

3D Model Download

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

USB520 Universal Signal Conditioner Module supports a wide range of sensor inputs such as ± 10 VDC, 0-20 mA, ±400 mV/V and TTL encoder pulses type inputs, USB520 USB Digital Signal Conditioner can be paired with various sensor types and eliminates the need for external power supply to the sensor and display equipment. The module is supplied by PC power through the USB bus, providing excitation voltage selectable 5-24 VDC / 1W to the sensor and simultaneously 5 VDC for Encoder.

The sensor output is digitized up to 4,800 SPS and processed by a microprocessor using the integrated high resolution (24 bits) analog to digital converter (ADC). As it supports a wide range of sensor inputs such as ± 10 VDC, 0-20 mA, ±400 mV/V and TTL encoder type inputs, USB520 USB Digital Signal Conditioner can be paired with various sensor types, such as:

- String Pot Position Sensors (draw wire sensor);

- Rotary Torque Sensors;

- DC LVDT Displacement Transducer - LVDT Signal Conditioning Module;
- TTL Output Encoders to measure RPM and Angle;

- Incremental Encoder Signal Converter.

The USB integration works hand in hand with SENSIT Test and Measurement software, which allows users to monitor the actual output of the sensor in real-time. FUTEK developed DLL Libraries to allow USB520 to also work with other software such as LabView® and Visual Studio.

Integration with Keyence Displacement Sensors

FUTEK electrical engineers partnered with a large medical device manufacturer to integrate USB520 with Keyence LK-G High-Speed, High-Accuracy CCD Laser Displacement Sensor.

The USB520 digital signal conditioner reads the 10V analog output from the Keyence LK-G controller and digitizes its output, providing up to 4,800 SPS @ 13.6 NFR (Noise-Free Resolution) digital output. Additionally, the USB520 enables logging and monitoring of the sensor output via a PC with FUTEK's SENSIT software.

This application demonstrates the USB520 capabilities as a universal digital signal conditioner, as it supports a wide range of sensor outputs such as ± 10 VDC, 0-20 mA, ±400 mV/V, and TTL encoder type outputs.
You can find the schematic drawing in the support section.

Features

USB 2.0 Communication Link
USB Bus-Powered (5V)
Input/Output Short Circuit Protection
Streaming ASCII Output
Offered with DLL/Mac Dynamic Library
CE Approved Class A (required for Medical and Aerospace applications)
Industrial metallic enclosure
Integrated DIN rail mount
Supports, VDC, mA, mV and TTL type input

Technical Documents

Resources

How to reduce electrical noise in your system

USB Troubleshooting Guide

USB520 & Keyence LK-G Displacement Sensor Integration

USB520 CE Declaration of Conformity

USB520 Encoder Rotary Torque Package

USB520 Quick Start Guide

Resolution Calculator

Product Features

USB Infographic - Sensor Compatibility & Integration Features

Videos

IHH500 and USB520 Binder Cable Assembly

USB520 Introductory Video

USB520/530 Product Set Up

Specifications

Electrical

Interference

Mechanical

Performance

Set-up

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Bridge Resistance	1	50		5000	Ohms nom.
Excitation			4.6		Vdc
Input Range	1	-3.4		3.4	mV/V nom.
	2	-10		10	Vdc
	3			20	mA
Communication Interface	1				USB
Weight			195		Gram
Nonlinearity		-0.005		0.005	% of R.O.
Power Supply	4		5		Vdc
Sample Rate		5		4800	Samples / Sec
Operating Temperature		-13		185	F
Storage Temperature		-40		257	F
