Shaft to Shaft Rotary Torque Sensor, 3/8 Dia

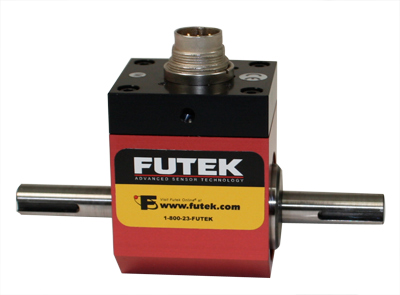

QTA106, 100 in-lb , Shaft to Shaft Rotary Torque Sensor, 3/8 Dia Shaft, 1/8 Key Way , Material - 17-4 PH S.S., 6 Pin Bendix Receptacle, PT02A-10-6P

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Rotational

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	5		12	Vdc
Input Resistance	1		350		Ohms nom.
Safe Overload	1			150	% of R.O.
Capacity	1			100	in-lb
Hysteresis	1	-0.1		0.1	% of R.O.
Nonlinearity	1	-0.2		0.2	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		2		mV/V nom.
Rotational Speed	1			3000	RPM
Compensated Temperature	1	68		113	F
Operating Temperature	1	14		194	F
Temperature Shift Span	1	-0.01		0.01	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
Zero Balance	1	-0.2		0.2	% of R.O.
