Miniature Screw Driver Reaction Torque Sensor

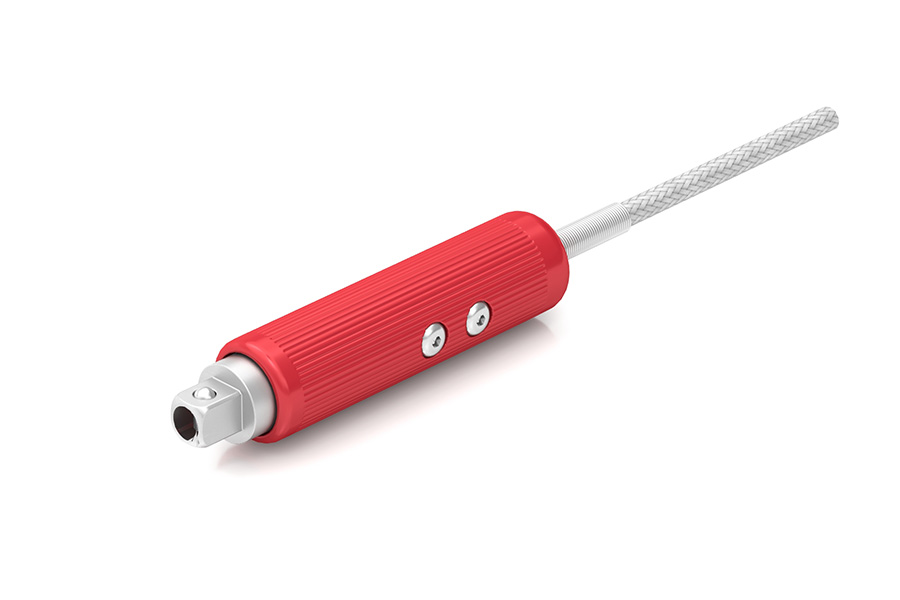

TAT200 , 100 in-oz , Miniature Inline Screw Driver Reaction Torque Sensor , 1/4-Sq. Drive , RoHS Compliant , Material - 2024-T4 , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

Spec Sheet

3D Model Download

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

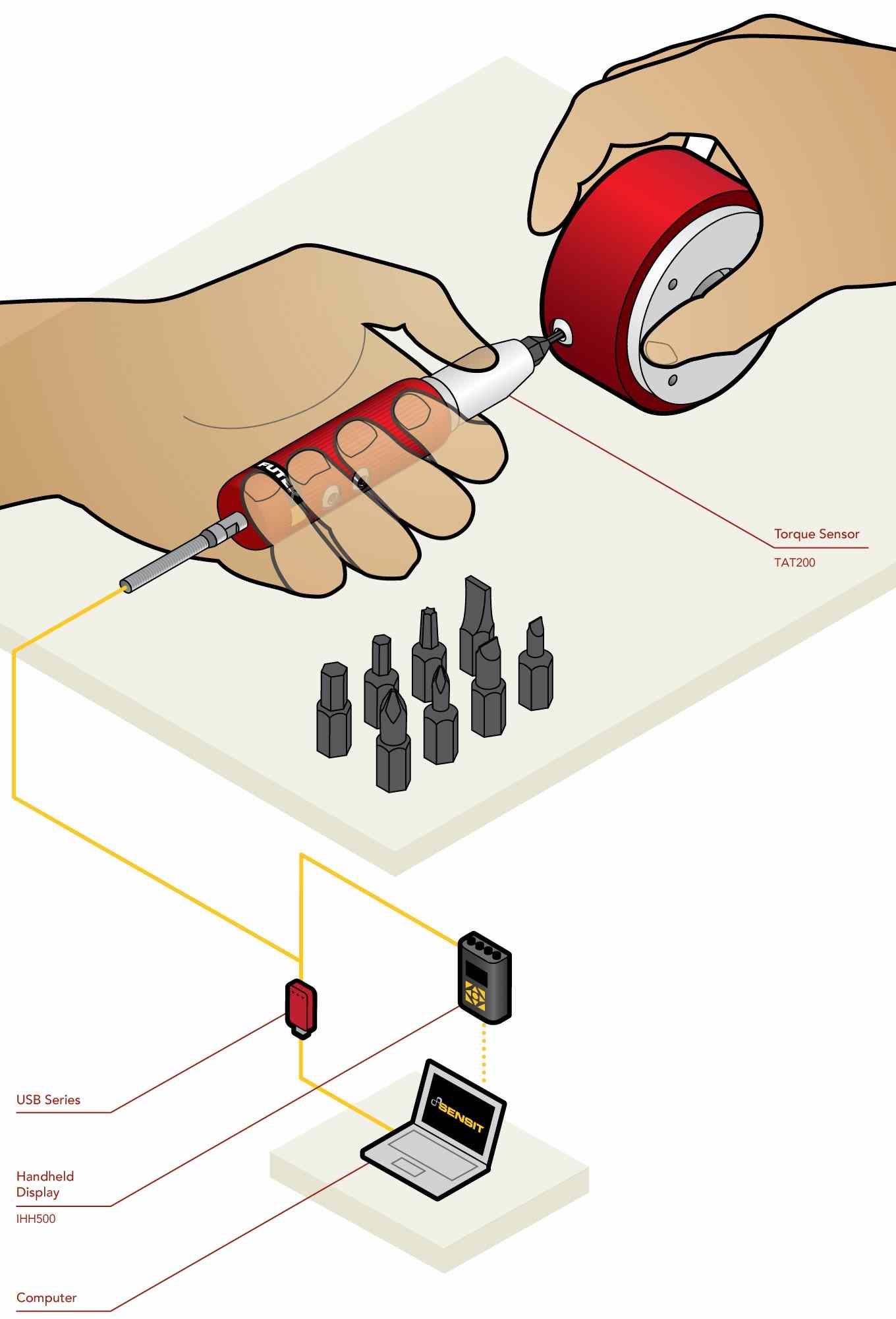

FUTEK’s TAT Miniature Electrical Torque ScrewDriver offers a unique solution for Torque auditing applications such as breakaway torque measurement (screw residual torque). From its anodized aluminum housing to its lightweight, the TAT200 Miniature Torque Screw Driver provides a great torque measurement solution.

As a part of the custom-engineered products, the Electrical Torque ScrewDriver captures the many capabilities FUTEK offers its customers. The standard capacities are available in our inventory, making it available for quick delivery. The TAT200 Reaction Torque Sensor - Miniature Screw Driver is manufactured in the USA and uses metal foil strain gauge technology.

Features

Designed for Torque auditing
Red anodized aluminum housing
Slim design
High accuracy Miniature Electrical Torque ScrewDriver

Technical Documents

Resources

Fastener Torque Auditing and Certification

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		1000		Ohms nom.
Safe Overload	1			150	% of R.O.
Capacity	1			100	in-oz
Hysteresis	1	-0.2		0.2	% of R.O.
Nonlinearity	1	-0.2		0.2	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		1000		Ohms nom.
Rated Output	1	1.7		2.4	mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1			160	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.02		0.02	% of R.O./F
