Store keyboard_arrow_right Load Cells keyboard_arrow_right

LSM

Filterskeyboard_arrow_right
# InStock
THREAD SIZE
#10-32 (19)
# OF BRIDGES/CHANNELS
1 (20)
MAX OPERATING TEMPERATURE
185 F (7)
200 F (13)
MIN OPERATING TEMPERATURE
-60 F (13)
-13 F (7)
MAX EXCITATION
18 VDC (20)
IP / NEMA RATING
IP00 (10)
IP30 (9)
DESCRIPTION

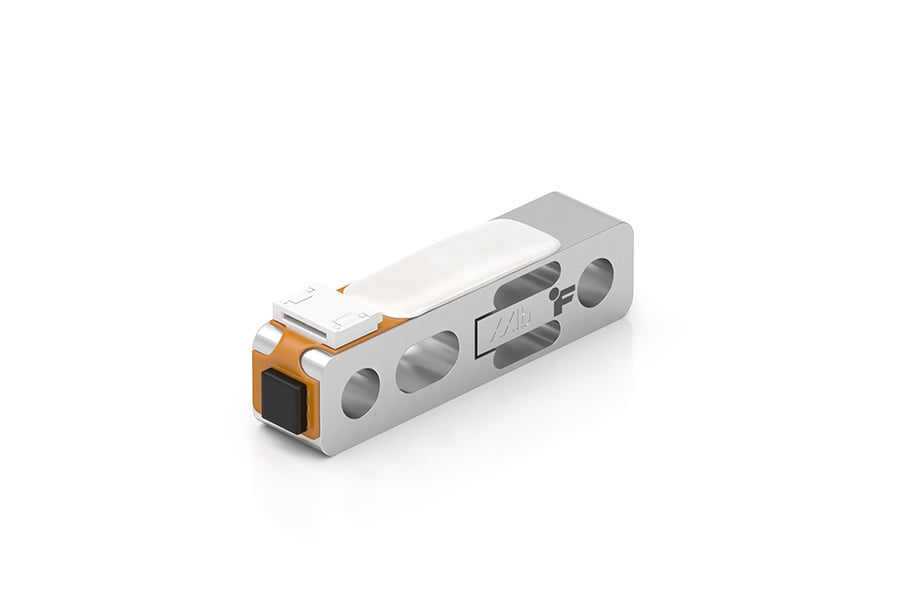

LSM100 , 450 g , Micro Parallelogram Load Cell w/ 1000% Safe Overload Protection , 3 mV/V Output w/ 1.6 mV/V Zero Balance , Material - 2024-T4 Aluminum , RoHS Compliant , 4 Conductor 1 mm Pitch Flat Flex Cable (FFC) , 2.5 in Long (1)
LSM250 , 0.25 lb , Parallelogram Load Cell , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Cable (1)
LSM250 , 0.5 lb , Parallelogram Load Cell , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Cable (1)
LSM250 , 1 lb , Parallelogram Load Cell , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Cable (1)
LSM300 , 10 lb , Parallelogram Load Cell , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
LSM300 , 100 lb , Parallelogram Load Cell , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
LSM300 , 100 lb , Parallelogram Load Cell w/ Special Mounting Provisions , RoHS Compliant, Output must be between 1.5 - 2.5 mV/V , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
LSM300 , 200 lb , Parallelogram Load Cell , RoHS Compliant , Material - 17-4 PH S.S. #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
LSM300 , 200 lb , Parallelogram Load Cell w/ Special Mounting Provisions , RoHS Compliant , Material - 17-4ph S.S. , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
LSM300 , 25 lb , Parallelogram Load Cell , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
LSM300 , 5 lb , Parallelogram Load Cell , RoHS, Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 22 Inches Long w/ FCI connector (1)
LSM300 , 50 lb , Parallelogram Load Cell , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
LSM300 , 50 lb , Parallelogram Load Cell w/ Special Mounting Provisions , RoHS Compliant , Output must be between 1.5 - 2.5 mV/V , Material - 2024-T4 , #10-32-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long (1)
LSM305 , 10 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 8 position 0.039" (1.00mm) JST Connector (1)
LSM305 , 100 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 8 position 0.039" (1.00mm) JST Connector (1)
LSM305 , 2.2 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 8 position 0.039" (1.00mm) JST Connector (1)
LSM305 , 200 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant , Material - 17-4 PH S.S , #10-32-Thread , Overload Protection , 8 position 0.039" (1.00mm) JST SH Connector (1)
LSM305 , 25 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 8 position 0.039" (1.00mm) JST Connector (1)
LSM305 , 5 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 8 position 0.039" (1.00mm) JST Connector (1)
LSM305 , 50 lb , Parallelogram Load Cell with TEDS and PT1000 RTD , RoHS Compliant , Material - 2024-T4 , #10-32-Thread , Overload Protection , 8 position 0.039" (1.00mm) JST Connector (1)
MAX COMPENSATED TEMPERATURE
160 F (20)
MIN COMPENSATED TEMPERATURE
60 F (20)
CUSTOM SPECIAL
N (15)
Y (5)
20 Products

FUTEK’s series of LSM load cells, or force sensors, are side mounted load cell with a single point design that are specifically made for OEM applications that require high precision or high volume production. These strain gauged based force sensors measure tension and compression and are also known as compact parallelogram sensors, or single point load cells or beam load cell.



The lightweight design and easy side mounting make these load cells particularly easy to assemble into the housing of OEM applications (OEM Load Cells). Built-in overload protection allows these durable force sensors to withstand over 10 times the capacity that could occur during installation. One of the potential applications of this model is 3D printer filament runout sensor, amongst others.



The models, which are available in aluminum and stainless steel, can be modified or customized to meet your requirements. Most standard capacities are in stock in our inventory, making them available for 24 hour shipping.
