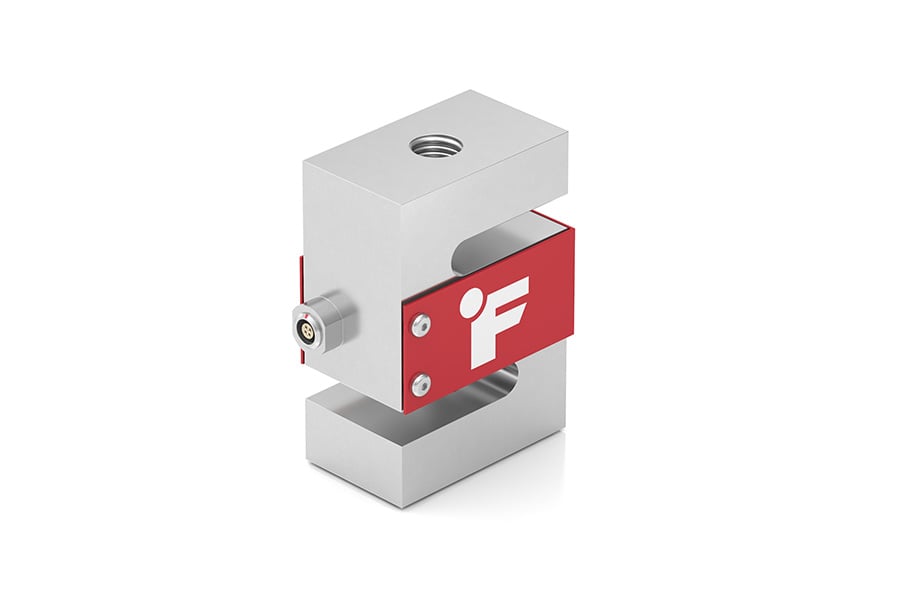

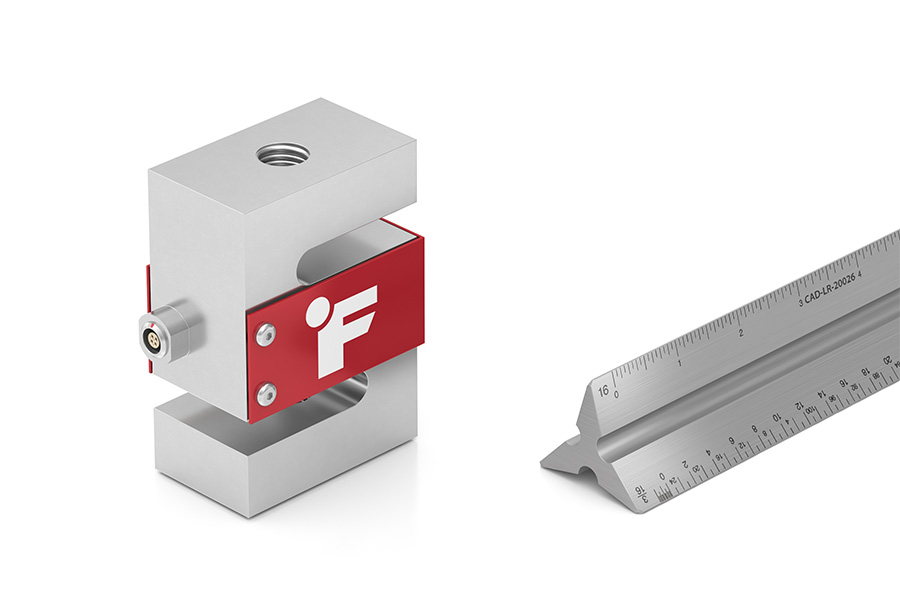

S-Beam Tension and Compression Load Cell

LSB400 , 5000 lb , Tension & Compression S-Beam Load Cell , M16x2-Thread , Material - 17-4 PH S.S. , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Spec Sheet

3D Model Download

Extraneous Load Factor

Listed price is in U.S. currency and subject to verification along with availability

Description

S Beam Load Cell

The S Beam Load Cell offers a compact and robust design for platforms, silos, or scales. The Standard LSB400 S Beam Load Cell model has female threads, comes in 17-4 Stainless Steel construction (5,000 lbs – 10,000 lbs). It is also available in metric threads.

The S Beam Load Cell has a high accuracy with a Nonlinearity of ±0.05%, deflection of 0.01” nominal and an operating temperature of -60° F to 200° F. This s beam Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.

Product Highlights:

Available in 17-4 Stainless Steel
Metric Threads Available
In both Tension & Compression
Utilizes Metal Foil Strain Gauge Technology
Weight: 53 oz

FUTEK LSB Series is also available with TEDS / IEEE1451.4 option.

Features

For in line use in both tension and compression
±0.05% Nonlinearity shear beam load cell
Connector or robust cable strain relief

Technical Documents

Resources

How to reduce electrical noise in your system

Product Manual

S-Beam Load Cell Series Manual

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		20	Vdc
Input Resistance	1		350		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			5000	lbs
Hysteresis	1	-0.05		0.05	% of R.O.
Nonlinearity	1	-0.05		0.05	% of R.O.
Nonrepeatability	1	-0.05		0.05	% of R.O.
Output Resistance	1		350		Ohms nom.
Output Symmetry	1	-0.2		0.2	% of R.O.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-40		180	F
Temperature Shift Span	1	-0.0008		0.0008	% of Load/F
Temperature Shift Zero	1	-0.001		0.001	% of R.O./F
